Model NO.
B725
Quantity:

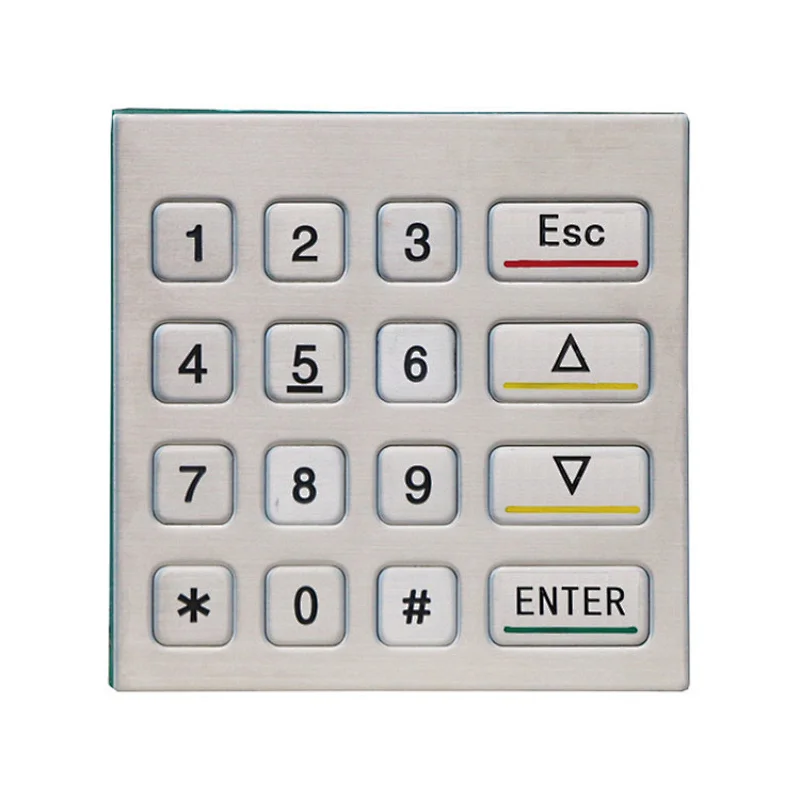

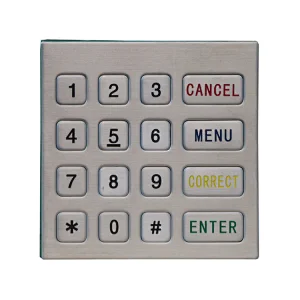

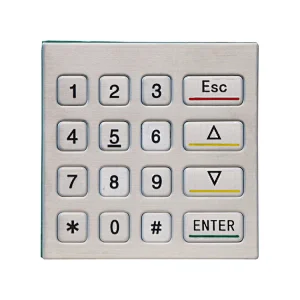

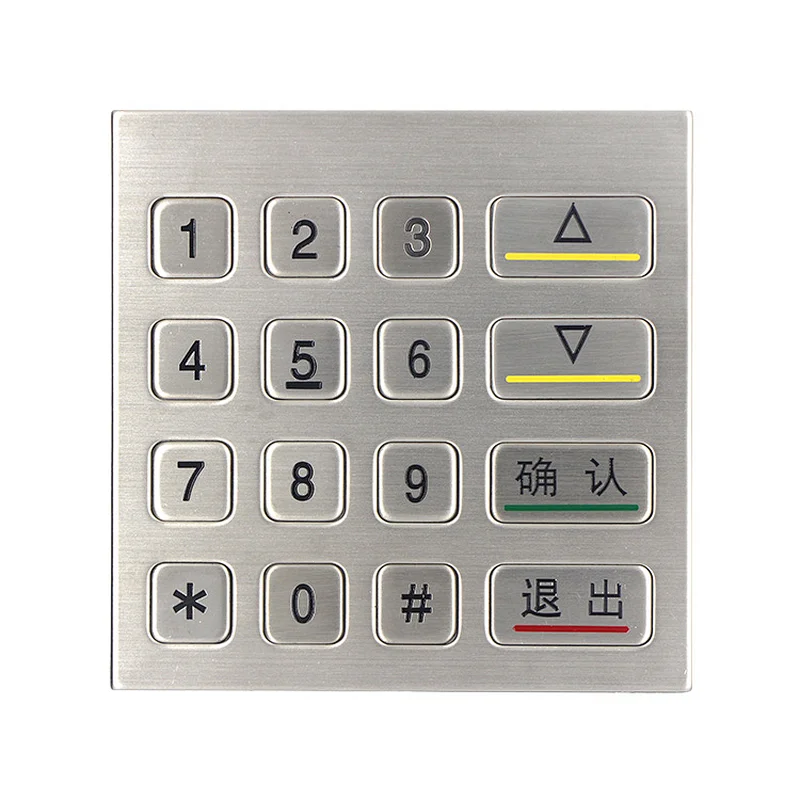

1.Keypad made of stainless steel.Vandal resistance.

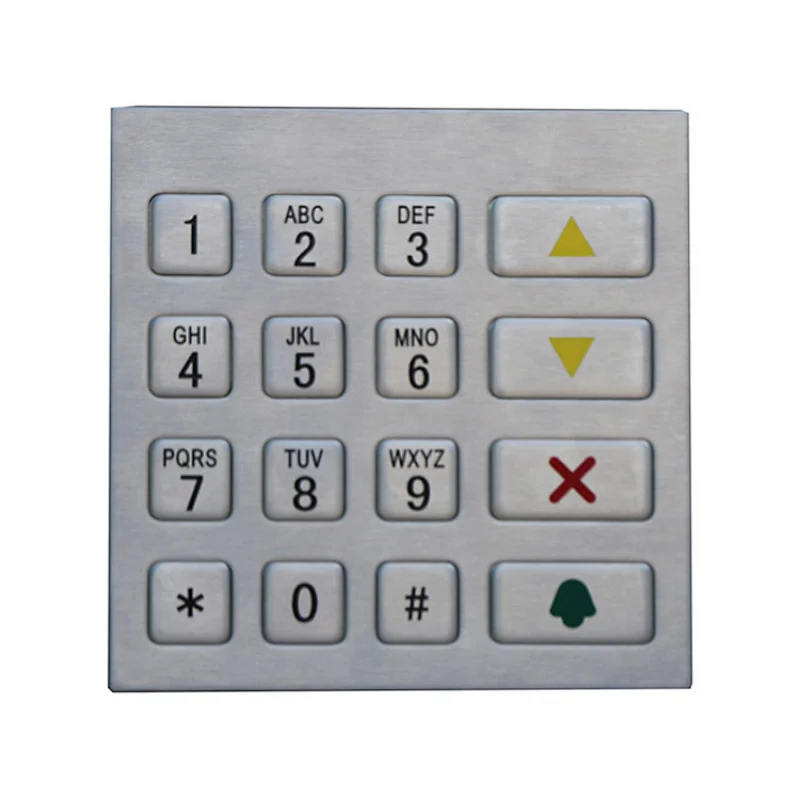

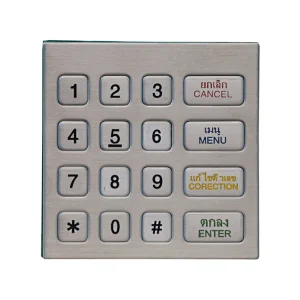

2.Font button surface and pattern can be customized according to customer requirements

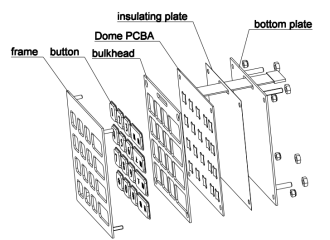

3.Double-sided board,Good for contact of gold-finger.

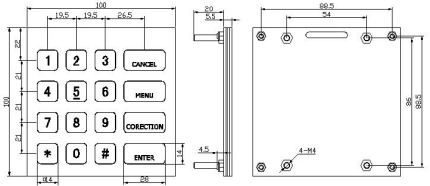

4.4X4 layout, Matrix design. 10 number buttons and 6 function buttons




ItemUsb Keypad
Input Voltage3.3V/5V
Waterproof GradeIP65
Vandal roof GradeIK09
Working LifeMore than 1 million time per key
Key Elasticity250g/2.45N
Key Travel Distance0.45mm
Working Temperature-25℃~+65℃
Storgage Temperature-40℃~+85℃
Relative Humidity30%-95%




The keypad usually used in ATM machine and fuel dispenser







B725
