1.20 Keys vandal-proof IP65 stainless steel matrix keypad.10 number keys, 10 function keys. 2.Keys are good touch feeling and accurate data input without any noise. 3.Easy to install and maintenance; flush mount. 4.The panel and buttons are made of stainless steel 304, which is highly rugged, vandal-proof, against corrosion, weather-proof. 5.Font and pattern of key surface can be customized. 6.The keypad is waterproof, anti-drilling and removal-proof. 7.The keypad uses double-sided PCB and mental dome; Good contact. 8.The labels on the buttons are made by etching, and fill in high strength paint.
Item
Vandal Proof Keypad
Input Voltage
3.3V/5V
Waterproof Grade

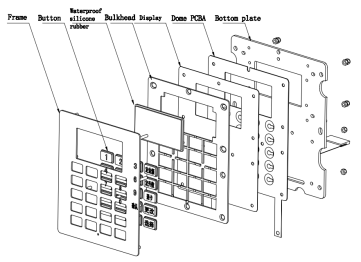

IP65
Actuation Force
250g/2.45N(Pressure point)
Rubber Life
More than 500 thousand cycles
Key Travel Distance
0.45mm
Working Temperature
-25℃~+65℃
Storage Temperature
-40℃~+85℃
Relative Humidity
30%-95%
Atmospheric Pressure
60Kpa-106Kpa
Normally used in public environment applications, such as fuel dispensers, vending machines, ticket machines, payment terminals.
