Traditional Payphone Armored Cord Handset
Traditional Payphone Armored Cord Handset
Traditional Payphone Armored Cord Handset
Traditional Payphone Armored Cord Handset
Traditional Payphone Armored Cord Handset
Traditional Payphone Armored Cord Handset
Traditional Payphone Armored Cord Handset
Traditional Payphone Armored Cord Handset
Traditional Payphone Armored Cord Handset

Traditional Payphone Armored Cord Handset

Model NO.
A17

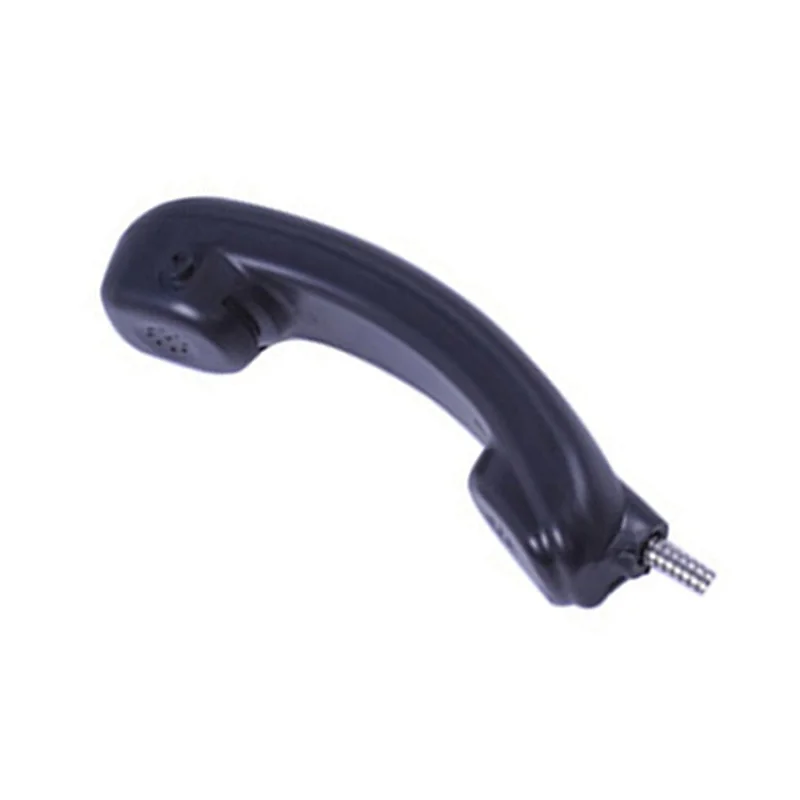

It is mainly for outdoor payphone with 304 stainless steel armored cord.
Quantity:

Material:
1. RoHS approved ChiMei Polycarbonate (Optional)
2. UL/RoHS approved ChiMei Acrylate Styrene Acrylonitrile (Default)
3. PC copolymer with enhanced UV stabilization Lexan Resin SLX2432T (Optional)
4. Explosion-proof Carbon loaded ABS and flame resistant ABS material are available

Cord Length:
1.  SUS304 Stainless steel armored cord (Default)
- Standard armored cord length 32 inch and 10 inch, 12 inch,18 inch and 23 inch are optional.
- Includes steel lanyard which is anchored to handset handle. Matched steel rope with different pull strength.
  - Dia: 1.6mm, 0.063”, Pull test load:170 kg, 375 lbs.
  - Dia: 2.0mm, 0.078”, Pull test load:250 kg, 551 lbs.
  - Dia: 2.5mm, 0.095”, Pull test load:450 kg, 992 lbs.




ItemPayphone Handset
Waterproof GradeIP65
Ambient Noise≤60dB
Working Frequency300~3400 Hz
SLR5~15 dB
RLR-7~2 dB
STMR≥7 dB
Working Temperature-25℃~+65℃
Relative Humidity≤95%
Atmospheric Pressure80~110 K Pa


handset      handset





Payphone Handset is mainly designed for outdoor coin payphone with strong pulling strength armored cord and lanyard.
