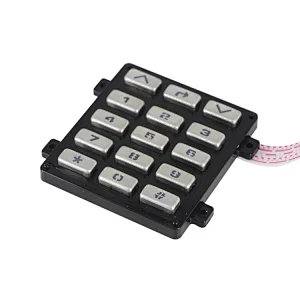

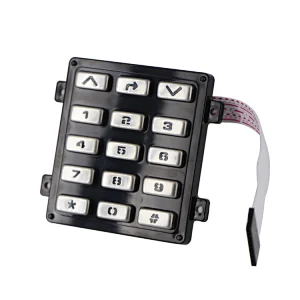

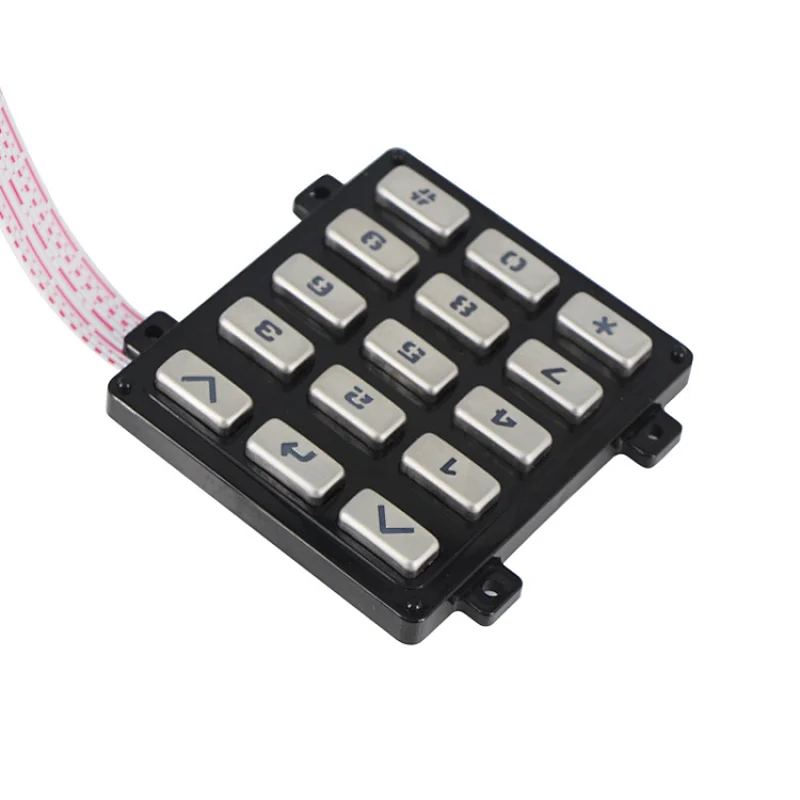

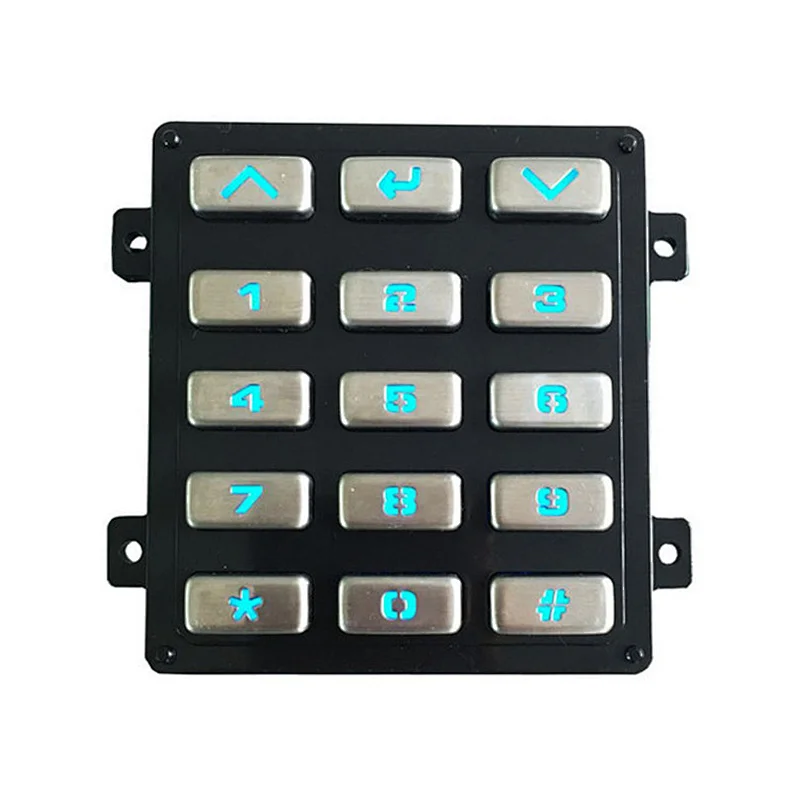

Tactile 3x5 15 Buttons Vending Machine Outdoor Keypad
Tactile 3x5 15 Buttons Vending Machine Outdoor Keypad
Tactile 3x5 15 Buttons Vending Machine Outdoor Keypad
Tactile 3x5 15 Buttons Vending Machine Outdoor Keypad
Tactile 3x5 15 Buttons Vending Machine Outdoor Keypad
Tactile 3x5 15 Buttons Vending Machine Outdoor Keypad
Tactile 3x5 15 Buttons Vending Machine Outdoor Keypad
Tactile 3x5 15 Buttons Vending Machine Outdoor Keypad
Tactile 3x5 15 Buttons Vending Machine Outdoor Keypad
Tactile 3x5 15 Buttons Vending Machine Outdoor Keypad
Tactile 3x5 15 Buttons Vending Machine Outdoor Keypad

Tactile 3x5 15 Buttons Vending Machine Outdoor Keypad

Model NO.
B882
Quantity:


1.Key frame using engineer PC/ABS.
2.Buttons made of high quality 304# brushed stainless steel.
3.Conductive silicone rubber produced using natural rubber, wear resistance, corrosion resistance, anti-aging
4.Board uses double-sided PCB (customized), contacts Gold-finger use of gold process, the contact is more reliable




Itemoutdoor keypad
Input Voltage3.3V/5V
Waterproof GradeIP65
Vandal roof GradeIK09
Working LifeMore than 1 million time per key
Key Elasticity250g/2.45N
Key Travel Distance0.45mm
Working Temperature-25℃~+65℃
Storgage Temperature-40℃~+85℃
Relative Humidity30%-95%




Keypad for access control system







The keypad is mainly used for access control system
