Model NO.
A03
Quantity:



Material:
1. RoHS approved ChiMei Polycarbonate (Optional)
2. UL/RoHS approved ChiMei Acrylate Styrene Acrylonitrile (Default)
3. PC copolymer with enhanced UV stabilization Lexan Resin SLX2432T (Optional)
4. Explosion-proof Carbon loaded ABS and flame resistant ABS material are available

Cord Length:

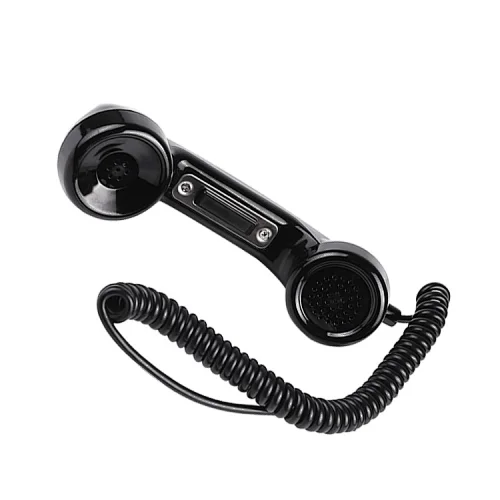

1. PVC curly cord (Default) - Standard cord length 9 inch in retracted, 6 feet after extended (Default) - Customized different length is available.
2. Weather resistant PVC curly cord (Optional)
3. Hytrel curly cord (Optional)

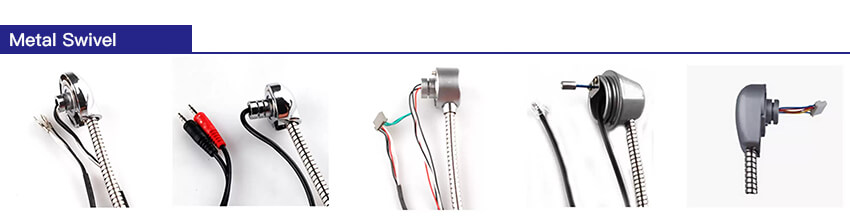

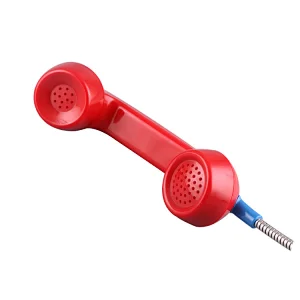

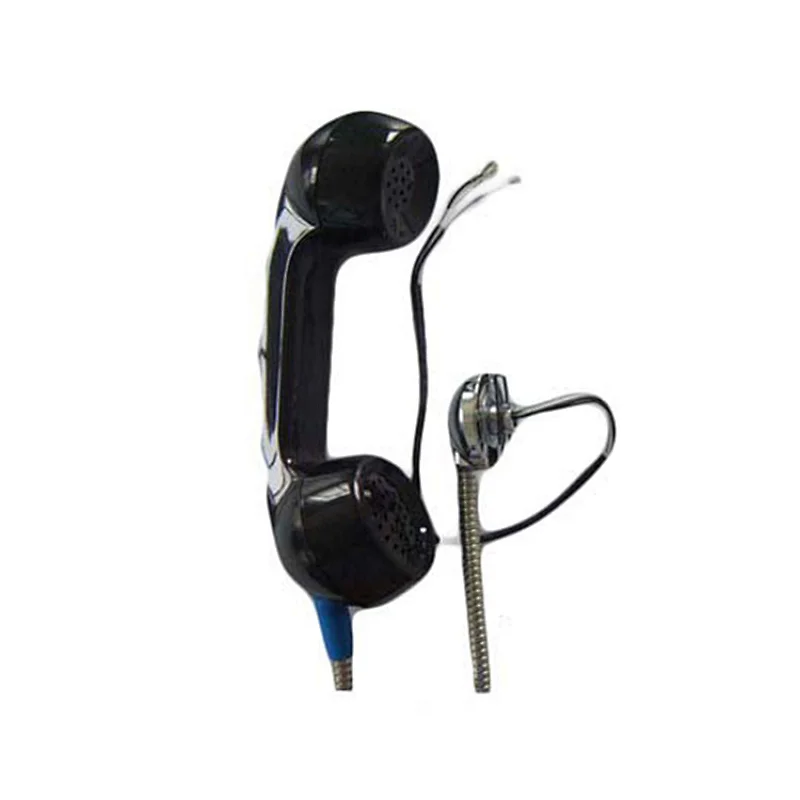

4. SUS304 Stainless steel armored cord (Default)
- Standard armored cord length 32 inch and 10 inch, 12 inch,18 inch and 23 inch are optional.
- Includes steel lanyard which is anchored to handset handle. Matched steel rope with different pull strength.
  - Dia: 1.6mm, 0.063”, Pull test load:170 kg, 375 lbs.
  - Dia: 2.0mm, 0.078”, Pull test load:250 kg, 551 lbs.
  - Dia: 2.5mm, 0.095”, Pull test load:450 kg, 992 lbs.





ItemRugged Handset
Waterproof GradeIP65
Ambient Noise≤60dB
Working Frequency300~3400 Hz
SLR5~15 dB
RLR-7~2 dB
STMR≥7 dB
Working Temperature-25℃~+65℃
Relative Humidity≤95%
Atmospheric Pressure80~110 K Pa




handset        handset

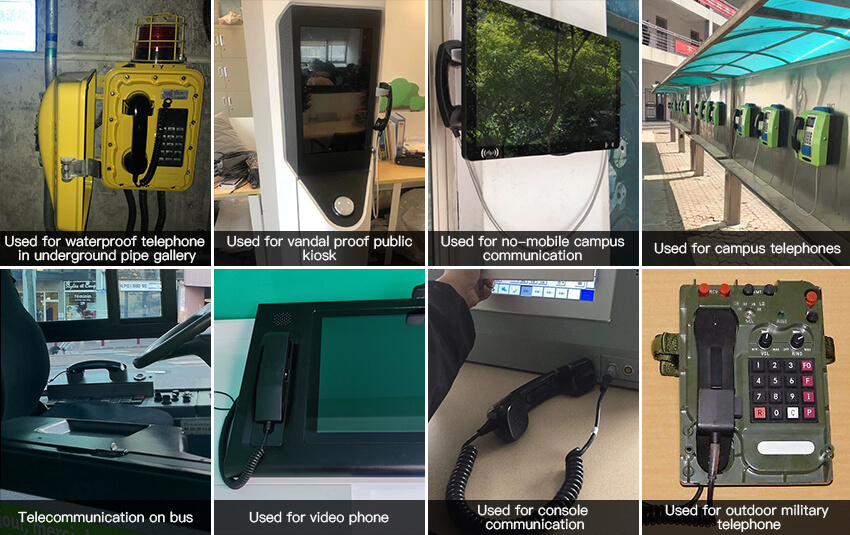

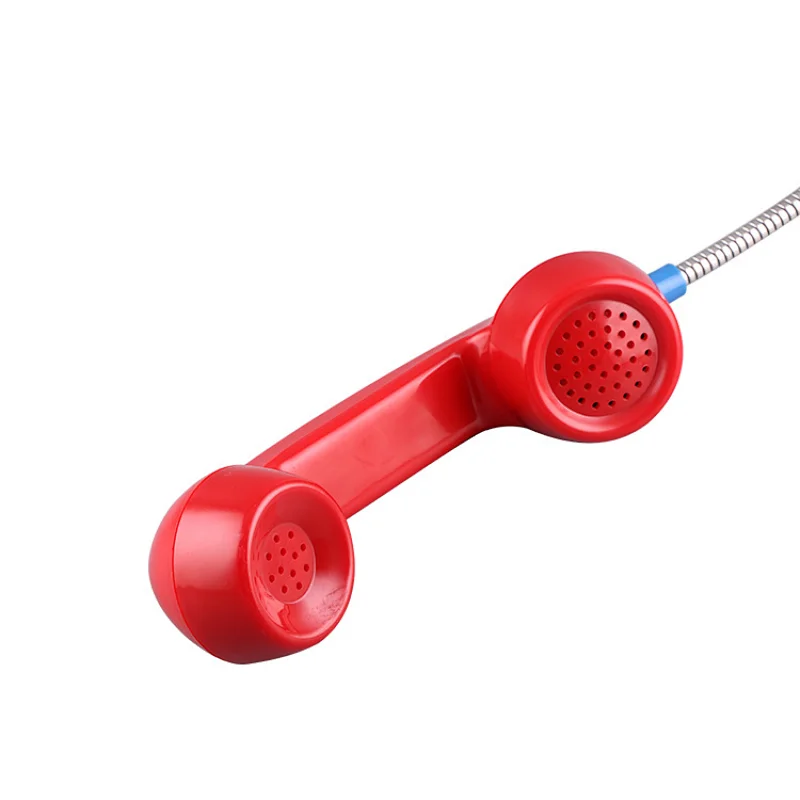

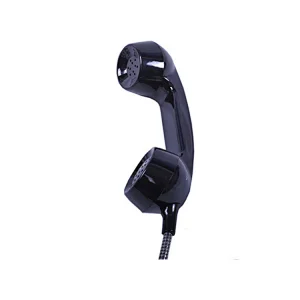

This Rugged Handset is popular in kiosk machine after connecting with kiosk mainboard with vandallism and waterproof features.
