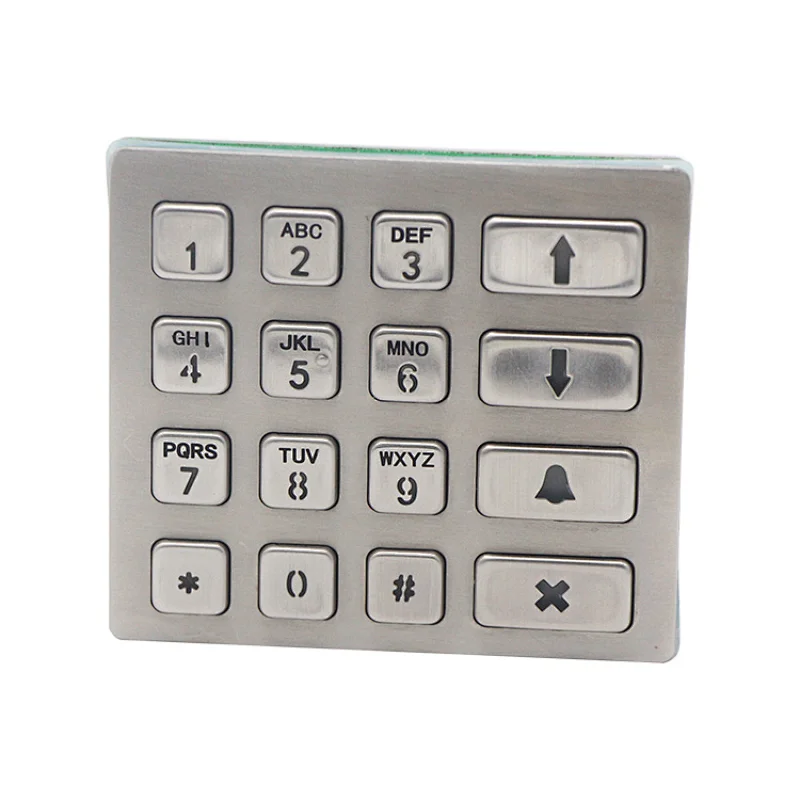

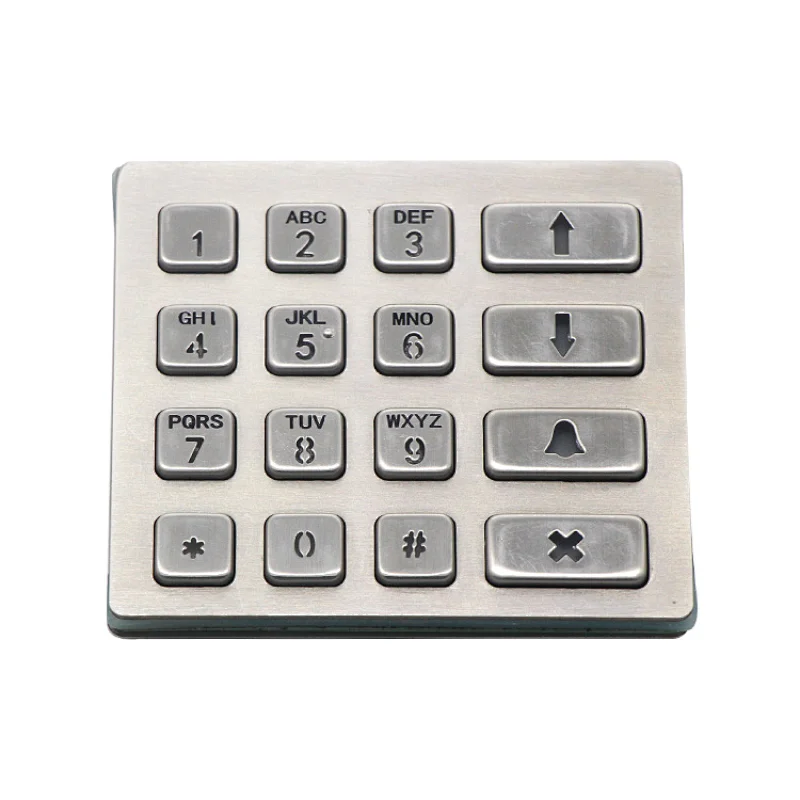

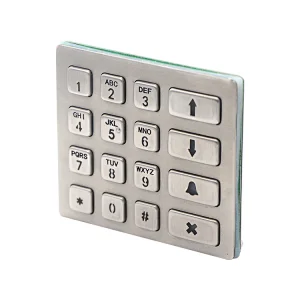

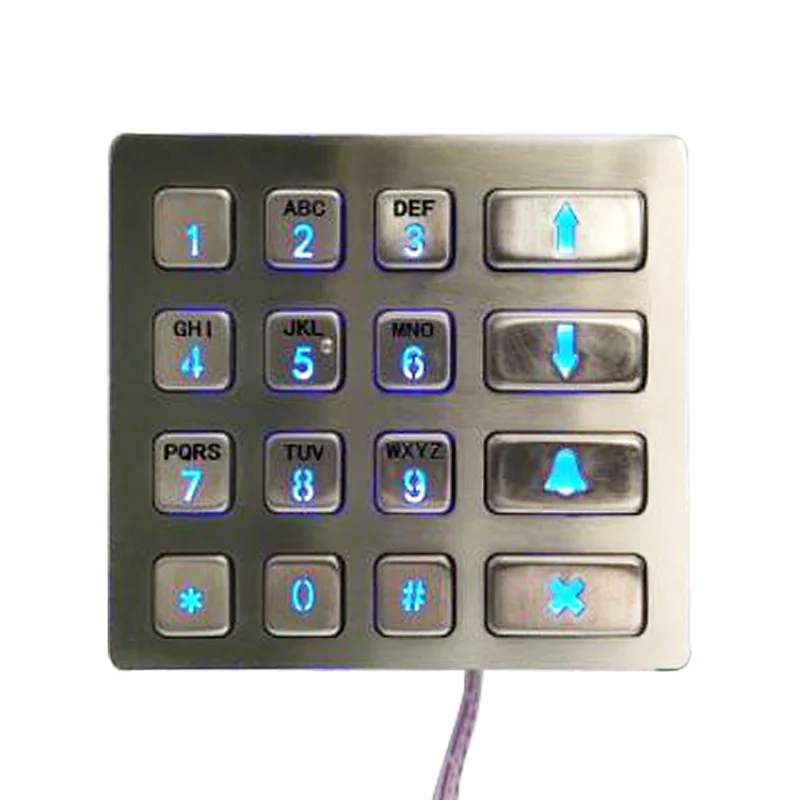

Rs485 16 Keys Industrial Weatherproof Metal Led Backlight Keypad
Print This Page
Rs485 16 Keys Industrial Weatherproof Metal Led Backlight Keypad
Model NO.
B801
Quantity:
Contact Now
Add To Inquiry Basket
Product Description
1.Material: 304# brushed stainless steel.
2.Conductive silicone rubber produced using natural rubber, wear resistance, corrosion resistance, anti-aging
3.Stainless steel keypad frame is available as customer’s request.
4.Double-sided PCB (customized), contacts Gold-finger use of gold process, the contact is more reliable
Item
Led Backlight Keypad
Input Voltage
3.3V/5V
Waterproof Grade
IP65
Vandal roof Grade
IK09
Working Life
More than 1 million time per key
Key Elasticity
250g/2.45N
Key Travel Distance
0.45mm
Working Temperature
-25℃~+65℃
Storgage Temperature
-40℃~+85℃
Relative Humidity
30%-95%

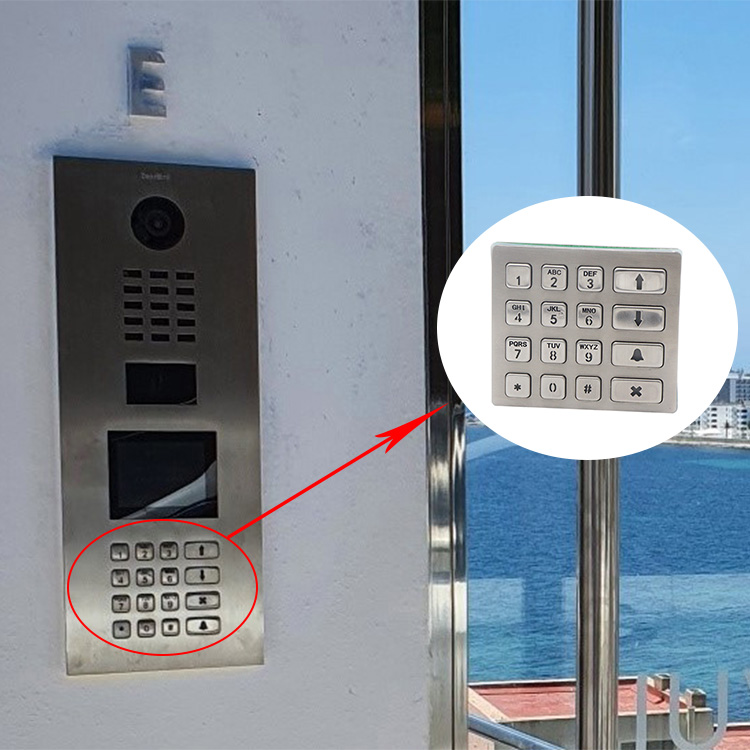

It is mainly for access control system, industrial telephone, vending machine, security system and some other public facilities.
