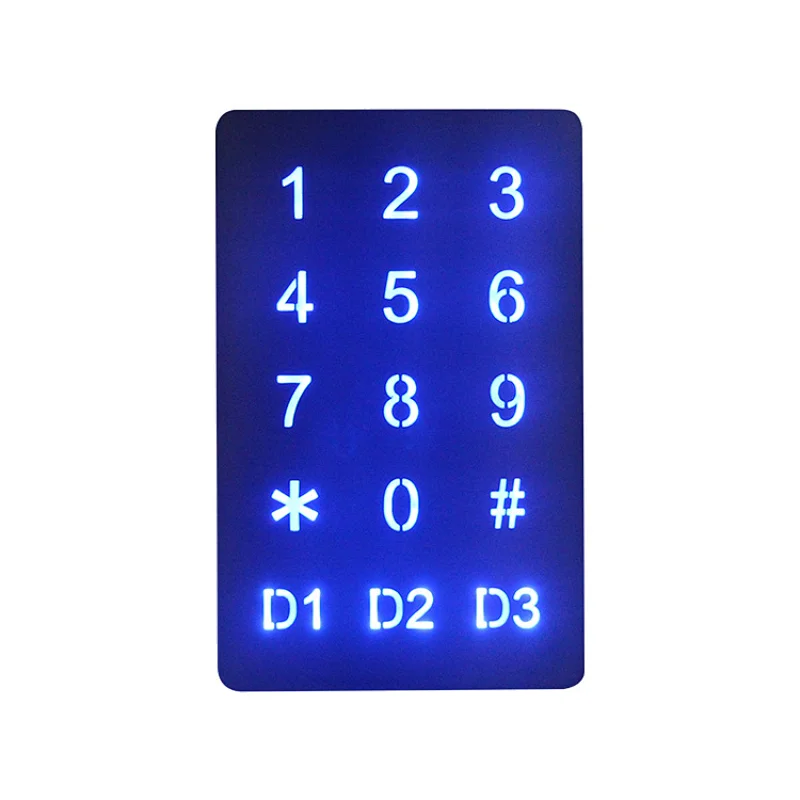

Optical Touch 15 Keys Ip 65 Waterproof Illuminated Stainless Steel Keypad
Optical Touch 15 Keys Ip 65 Waterproof Illuminated Stainless Steel Keypad
Optical Touch 15 Keys Ip 65 Waterproof Illuminated Stainless Steel Keypad
Optical Touch 15 Keys Ip 65 Waterproof Illuminated Stainless Steel Keypad
Optical Touch 15 Keys Ip 65 Waterproof Illuminated Stainless Steel Keypad
Optical Touch 15 Keys Ip 65 Waterproof Illuminated Stainless Steel Keypad
Optical Touch 15 Keys Ip 65 Waterproof Illuminated Stainless Steel Keypad
Optical Touch 15 Keys Ip 65 Waterproof Illuminated Stainless Steel Keypad
Optical Touch 15 Keys Ip 65 Waterproof Illuminated Stainless Steel Keypad
Optical Touch 15 Keys Ip 65 Waterproof Illuminated Stainless Steel Keypad
Optical Touch 15 Keys Ip 65 Waterproof Illuminated Stainless Steel Keypad

Optical Touch 15 Keys Ip 65 Waterproof Illuminated Stainless Steel Keypad

Model NO.
B809
The 15 key S.series keypad is specially designed for public environment applications, such as vending machines, ticket machines, payment terminals, telephones, access control systems and industrial machinery.
Quantity:



1.Material: 304# brushed stainless steel.
2.Integrated design in keys with front panel
3.Infrared Induction keys with LED indicated
4.Different LED color is available.
5.The keys layout is customized




Itemstainless steel keypad
Input Voltage3.3V+/-0.3V
Waterproof GradeIP67(The front panel)
Vandal roof GradeIK08
Working LifeMore than 2 million time per key
Working Temperature-25℃~+65℃
Storgage Temperature-40℃~+85℃
Relative Humidity30%-95%
Atmospheric Pressure60Kpa-106Kpa
LED colorCustomized



Metal keypad







The keypad is specially designed for public environment applications, such as vending machines, ticket machines, payment terminals, telephones, access control systems and industrial machinery.
