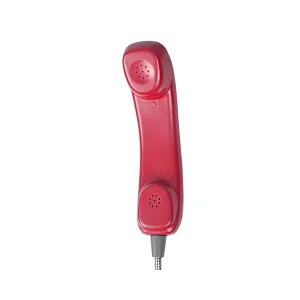

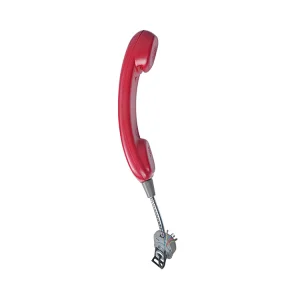

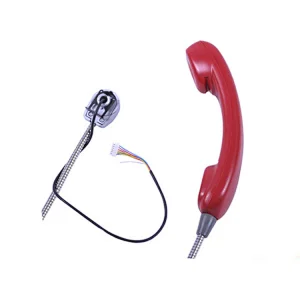

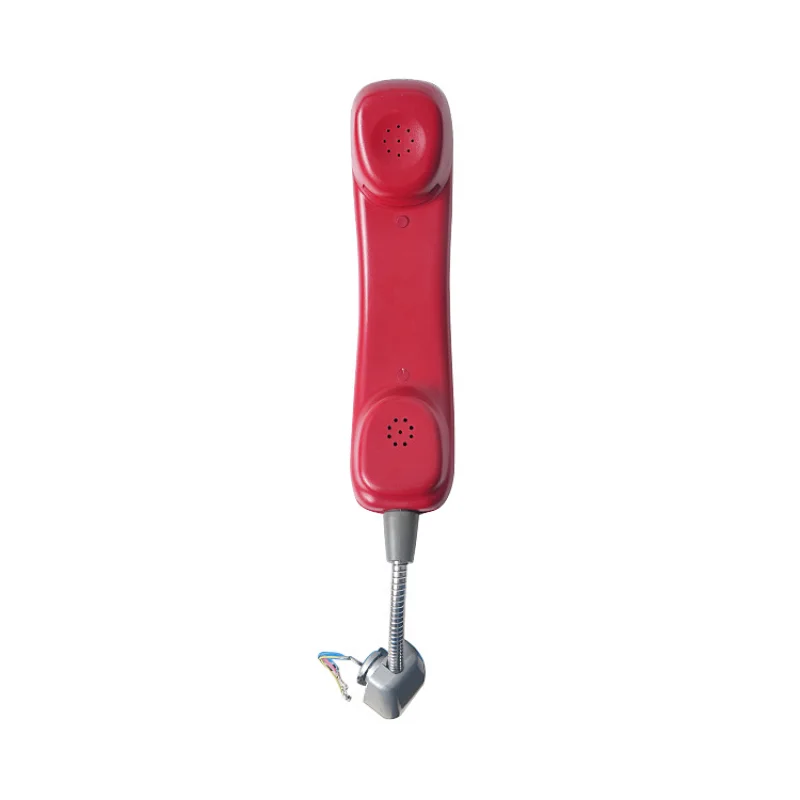

Old Style Pay Phone Handset
Old Style Pay Phone Handset
Old Style Pay Phone Handset
Old Style Pay Phone Handset
Old Style Pay Phone Handset

Old Style Pay Phone Handset

Model NO.
A13
Quantity:

Material:
1. RoHS approved ChiMei Polycarbonate (Optional)
2. UL/RoHS approved ChiMei Acrylate Styrene Acrylonitrile (Default)
3. PC copolymer with enhanced UV stabilization Lexan Resin SLX2432T (Optional)
4. Explosion-proof Carbon loaded ABS and flame resistant ABS material are available

Cord Length:
1. PVC curly cord (Default) - Standard cord length 9 inch in retracted, 6 feet after extended (Default) - Customized different length is available.
2. Weather resistant PVC curly cord (Optional)
3. Hytrel curly cord (Optional)
4. SUS304 Stainless steel armored cord (Default)
- Standard armored cord length 32 inch and 10 inch, 12 inch,18 inch and 23 inch are optional.
- Includes steel lanyard which is anchored to handset handle. Matched steel rope with different pull strength.
  - Dia: 1.6mm, 0.063”, Pull test load:170 kg, 375 lbs.
  - Dia: 2.0mm, 0.078”, Pull test load:250 kg, 551 lbs.
  - Dia: 2.5mm, 0.095”, Pull test load:450 kg, 992 lbs.



Waterproof GradeIP65
Ambient Noise≤60dB
Working Frequency3003400 Hz
SLR515 dB
RLR-72 dB
STMR≥7 dB
Working Temperature-25℃+65℃
Relative Humidity≤95
Atmospheric Pressure80110 K Pa


handset             handset

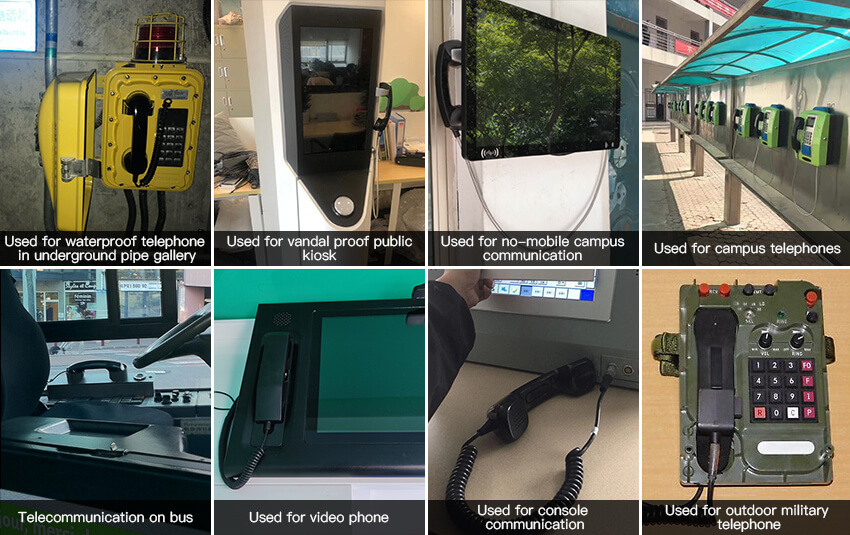

It is mainly designed for traditional payphone telephone in past years with vandal proof features which used in public area. Now it is popular in access control system, industrial telephone, vending machine, security system and some other public facilities.
