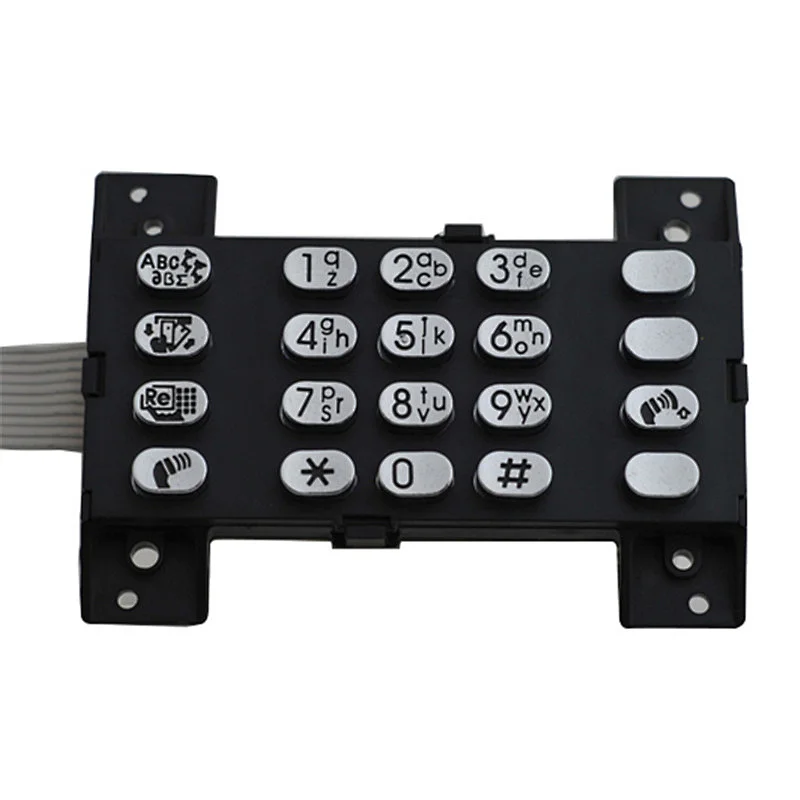

New Keypad
New Keypad

New Keypad

Model NO.
B527
Quantity:

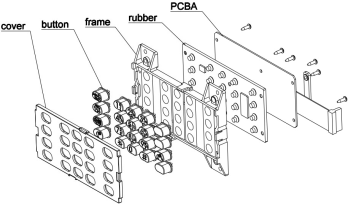

1.Key frame uses zinc alloy material.
2. Buttons are made of high quality zinc alloy, with a strong anti-destruction capability.
3. With natural conductive silicone rubber -weather resistance, corrosion resistance, anti-aging.
4. Double side PCB with golden finger, resistance to oxidation.





Itemnew keypad
Input Voltage3.3V/5V
Waterproof GradeIP65
Vandal roof GradeIK09
Working LifeMore than 1 million time per key
Key Elasticity250g/2.45N
Key Travel Distance0.45mm
Working Temperature-25℃~+65℃
Storgage Temperature-40℃~+85℃
Relative Humidity30%-95%














It is mainly for access control system, industrial telephone, vending machine, security system and some other public facilities.
