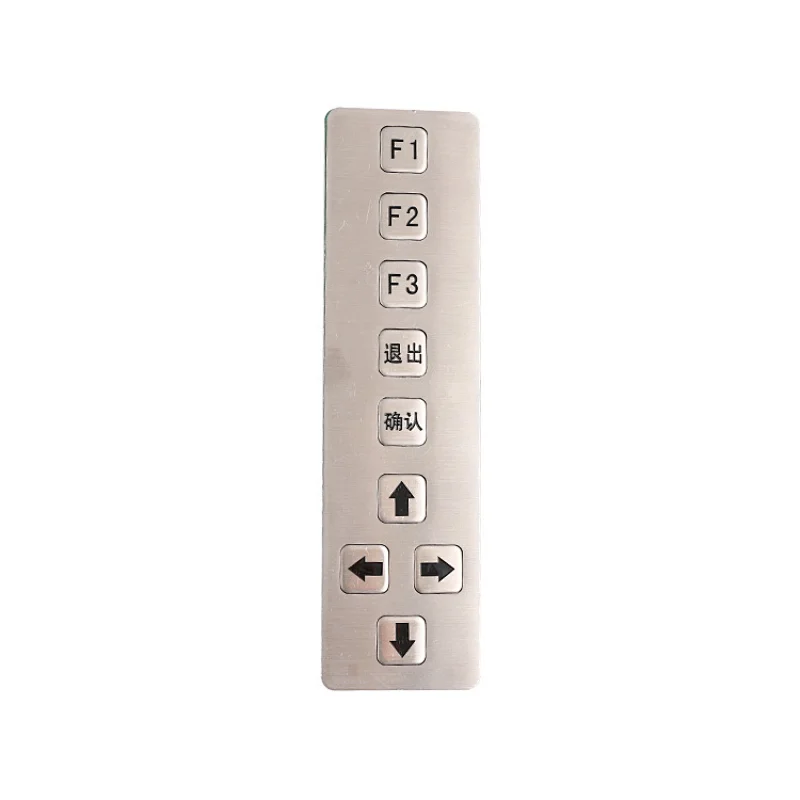

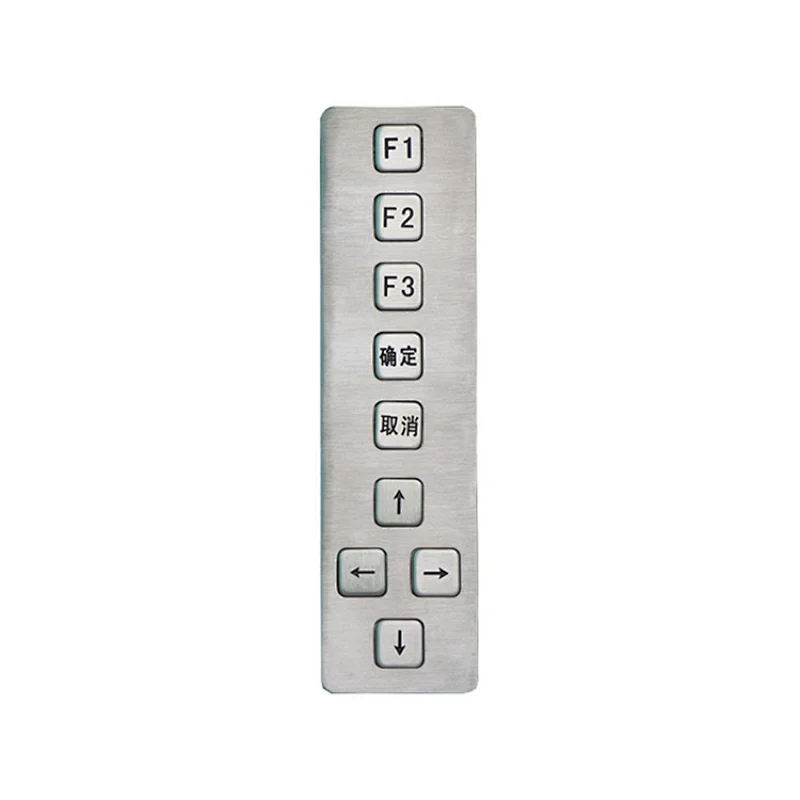

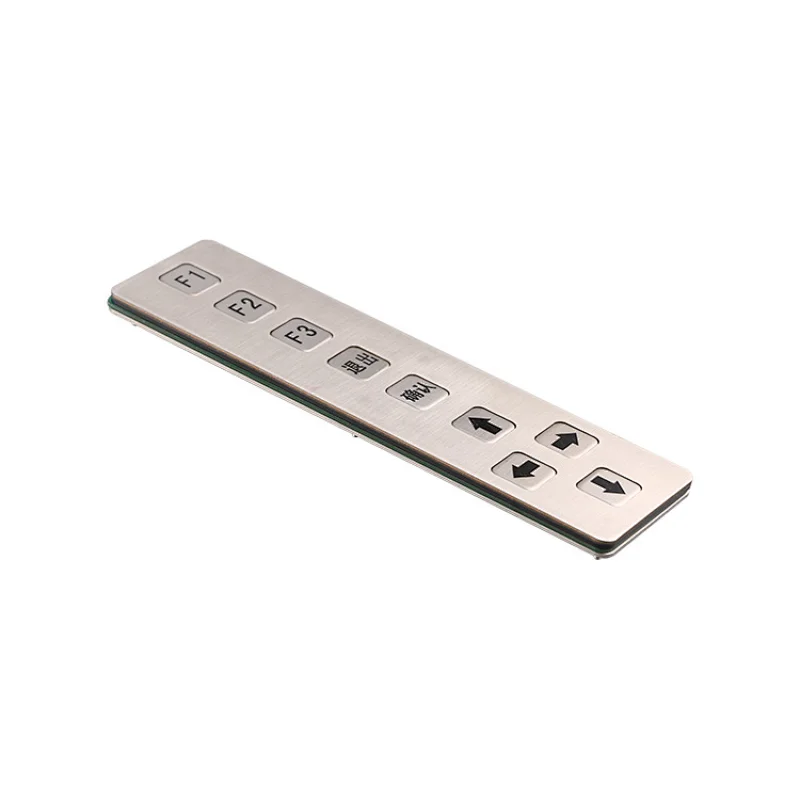

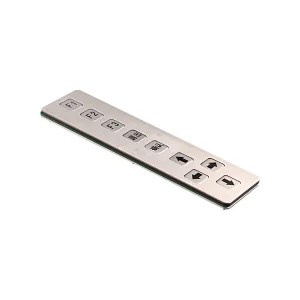

1.Keypad made of stainless steel.Vandal resistance.
2.Font button surface and pattern can be customized according to customer requirements
Keypad connector is optional.
| Item | arrow keypad |
| Input Voltage | 3.3V/5V |
| Waterproof Grade | IP65 |
| Actuation Force | 250g/2.45N(Pressure point) |
| Rubber Life | More than 500 thousand cycles |
| Key Travel Distance | 0.45mm |
| Working Temperature | -25℃～+65℃ |
| Storage Temperature | -40℃～+85℃ |
| Relative Humidity | 30%-95% |
| Atmospheric Pressure | 60Kpa-106Kpa |
The keypad mainly used in security system and some other public facilities
