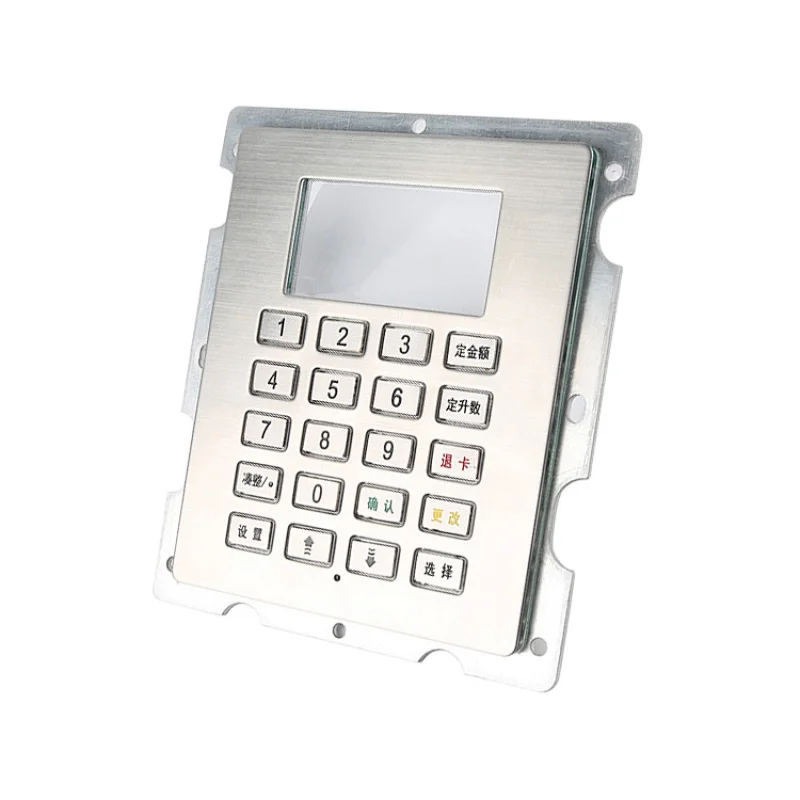

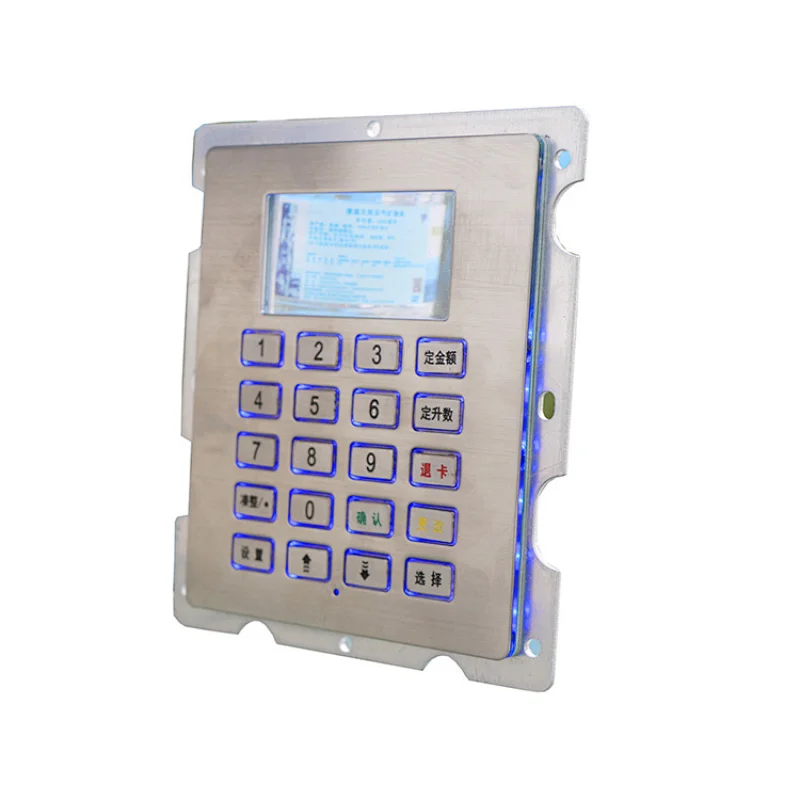

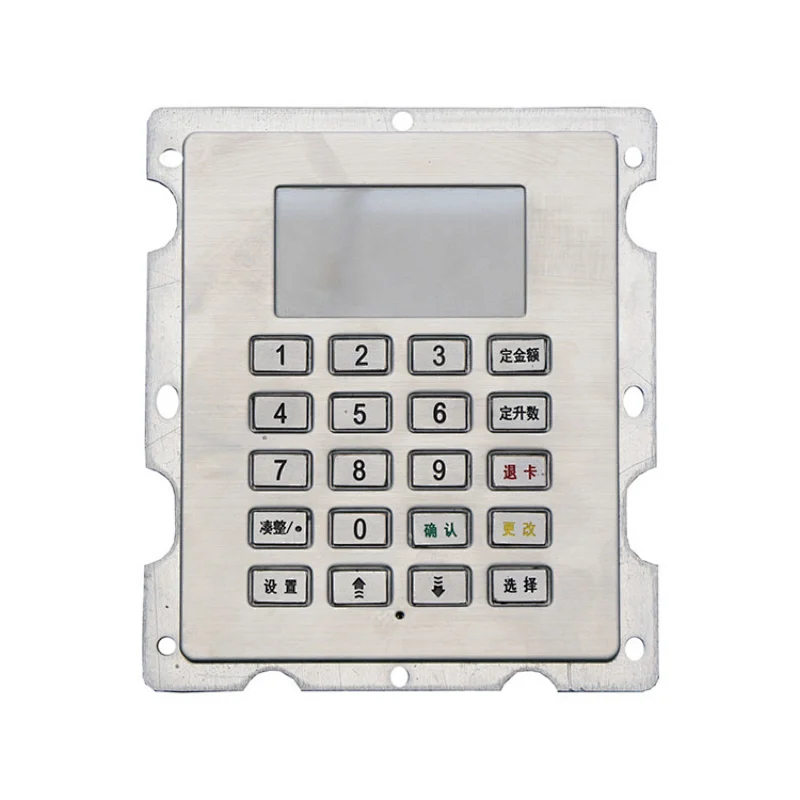

Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad
Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad
Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad
Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad
Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad
Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad
Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad
Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad
Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad
Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad
Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad
Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad
Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad

Led Backlight Rugged Vandal Proof Fuel Dispenser Keypad

Model NO.
B802
Quantity:


1.Material: 304# brushed stainless steel.
2.Conductive silicone rubber produced using natural rubber, wear resistance, corrosion resistance, anti-aging
3.Stainless steel keypad frame is available as customer’s request.
4.Double-sided PCB (customized), contacts Gold-finger use of gold process, the contact is more reliable



Itemfuel dispenser keypad
Input Voltage3.3V/5V
Waterproof GradeIP65
Vandal roof GradeIK09
Working LifeMore than 1 million time per key
Key Elasticity250g/2.45N
Key Travel Distance0.45mm
Working Temperature-25℃~+65℃
Storgage Temperature-40℃~+85℃
Relative Humidity30%-95%




Waterproof metal keypad







The keypad will be used in fuel dispenser
