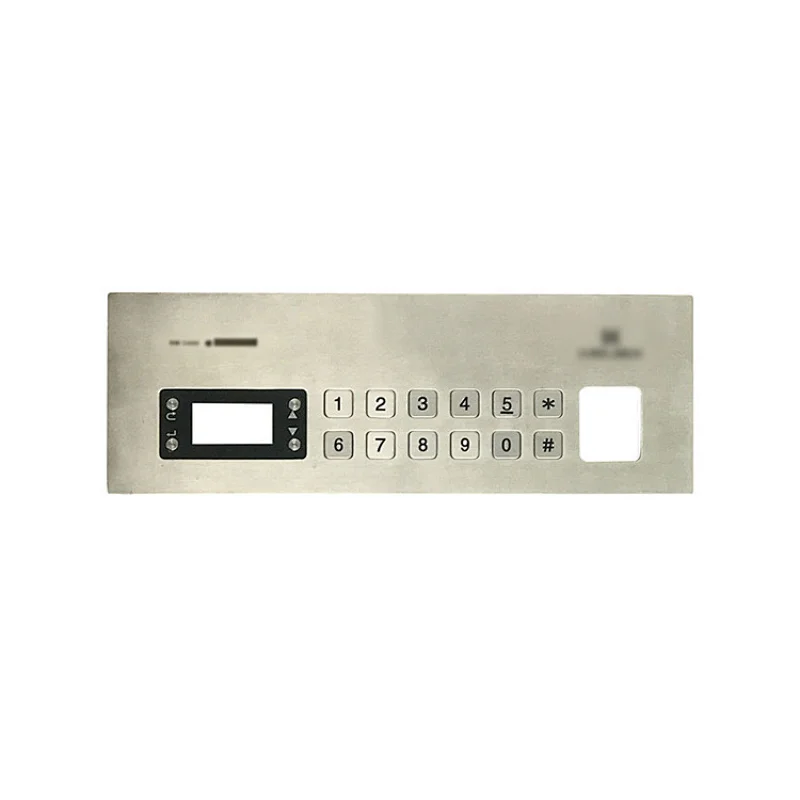

Lcd Display Customized Metal Military Weatherproof 2x6 Layout Keypad
Lcd Display Customized Metal Military Weatherproof 2x6 Layout Keypad
Lcd Display Customized Metal Military Weatherproof 2x6 Layout Keypad
Lcd Display Customized Metal Military Weatherproof 2x6 Layout Keypad
Lcd Display Customized Metal Military Weatherproof 2x6 Layout Keypad

Lcd Display Customized Metal Military Weatherproof 2x6 Layout Keypad

Model NO.
B730
Quantity:


1.Keypad made of stainless steel.Vandal resistance.
2.Font button surface and pattern can be customized according to customer requirements
3.Buttons layout could be customized as clients' request.
4.With the exception of the telephone, the keyboard can also be designed for other purposes.




ItemWeatherproof Keypad
Input Voltage3.3V/5V
Waterproof GradeIP65
Actuation Force250g/2.45N(Pressure point)
Rubber LifeMore than 500 thousand cycles
Key Travel Distance0.45mm
Working Temperature-25℃~+65℃
Storage Temperature-40℃~+85℃
Relative Humidity30%-95%
Atmospheric Pressure60Kpa-106Kpa




customized metal keypad







keypad mainly used for ATM and access control system
