Industrial Telephone Vandal Proof Handset
Industrial Telephone Vandal Proof Handset
Industrial Telephone Vandal Proof Handset
Industrial Telephone Vandal Proof Handset
Industrial Telephone Vandal Proof Handset
Industrial Telephone Vandal Proof Handset
Industrial Telephone Vandal Proof Handset
Industrial Telephone Vandal Proof Handset
Industrial Telephone Vandal Proof Handset
Industrial Telephone Vandal Proof Handset
Industrial Telephone Vandal Proof Handset

Industrial Telephone Vandal Proof Handset

Model NO.
A01
Quantity:



Material:
1. RoHS approved ChiMei Polycarbonate (Optional)
2. UL/RoHS approved ChiMei Acrylate Styrene Acrylonitrile (Default)
3. PC copolymer with enhanced UV stabilization Lexan Resin SLX2432T (Optional)
4. Explosion-proof Carbon loaded ABS and flame resistant ABS material are available

Cord Length:

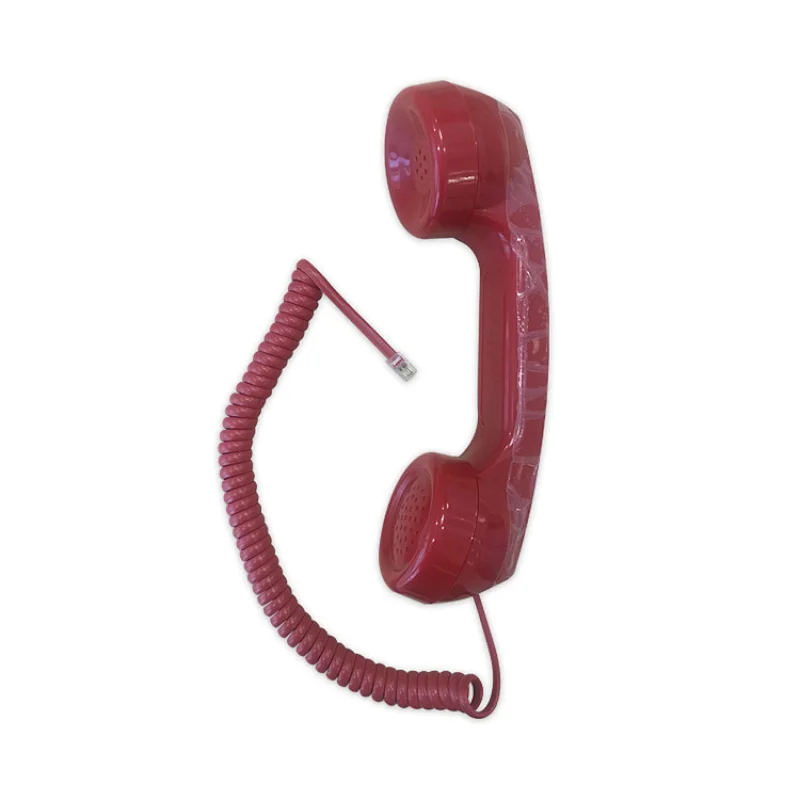

1. PVC curly cord (Default) - Standard cord length 9 inch in retracted, 6 feet after extended (Default) - Customized different length is available.
2. Weather resistant PVC curly cord (Optional)
3. Hytrel curly cord (Optional)

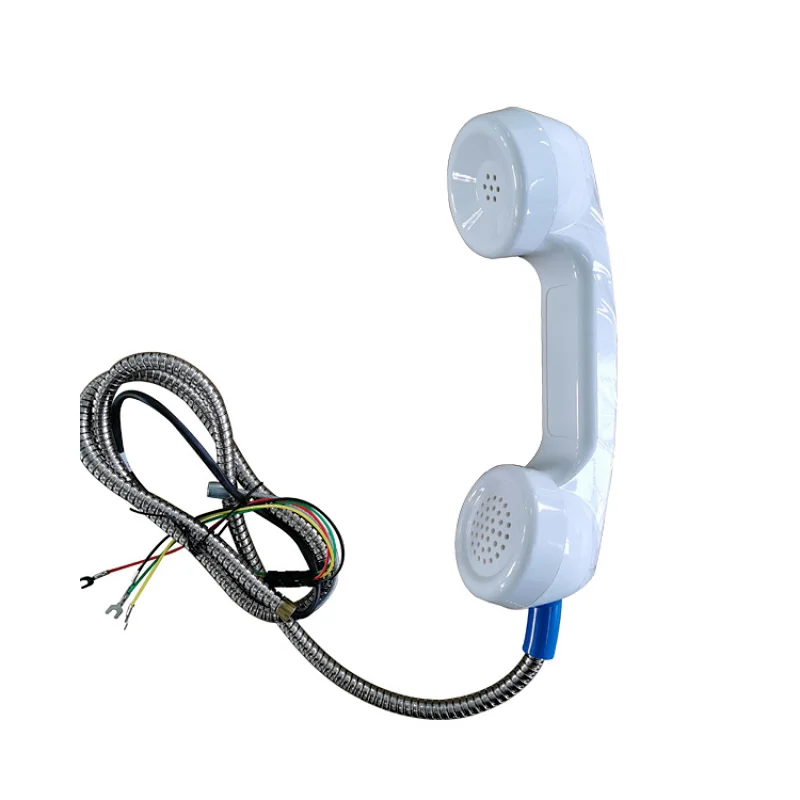

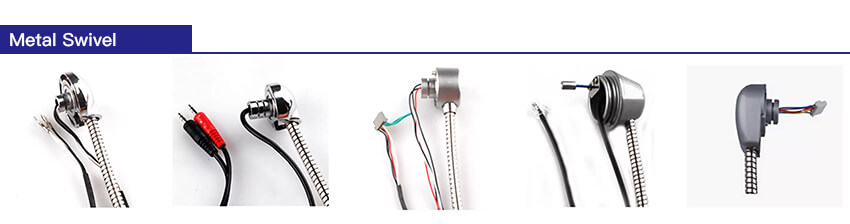

4. SUS304 Stainless steel armored cord (Default)
- Standard armored cord length 32 inch and 10 inch, 12 inch,18 inch and 23 inch are optional.
- Includes steel lanyard which is anchored to handset handle. Matched steel rope with different pull strength.
  - Dia: 1.6mm, 0.063”, Pull test load:170 kg, 375 lbs.
  - Dia: 2.0mm, 0.078”, Pull test load:250 kg, 551 lbs.
  - Dia: 2.5mm, 0.095”, Pull test load:450 kg, 992 lbs.

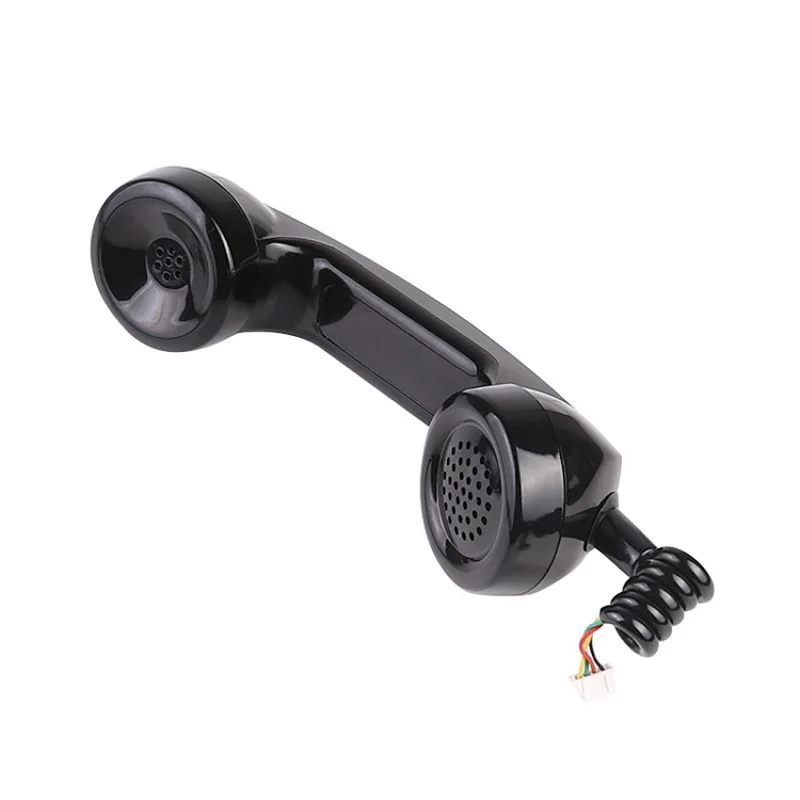

ItemCorded Handset
Waterproof GradeIP65
Ambient Noise≤60dB
Working Frequency300~3400 Hz
SLR5~15 dB
RLR-7~2 dB
STMR≥7 dB
Working Temperature-25℃~+65℃
Relative Humidity≤95%
Atmospheric Pressure80~110 K Pa



handset        handset

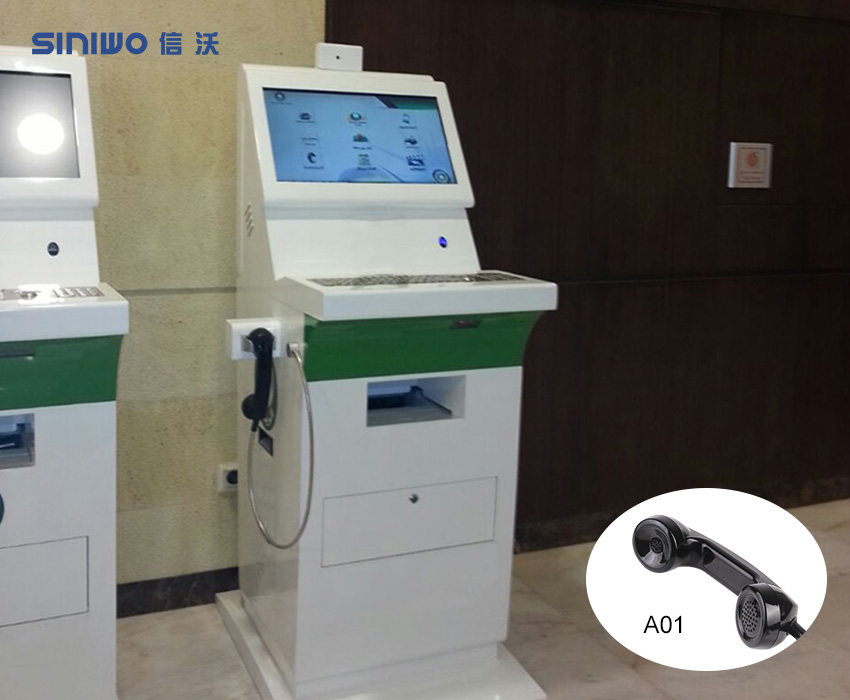

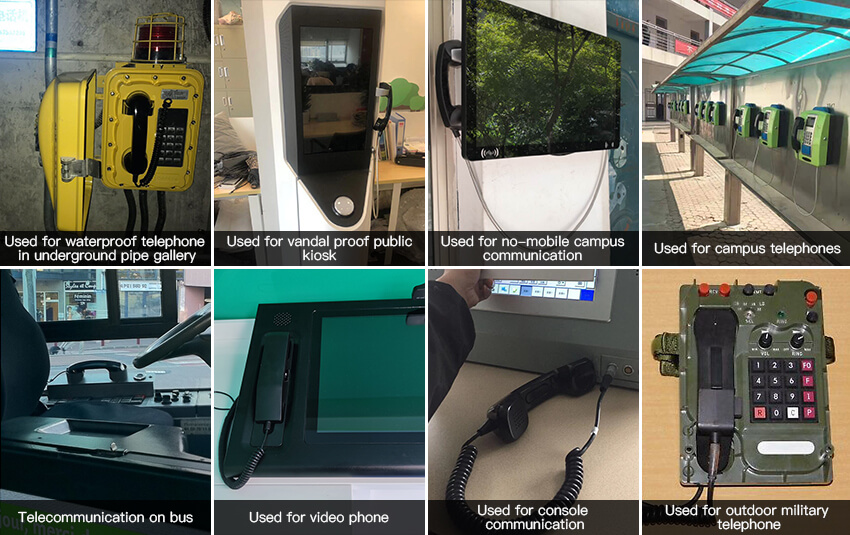

This handset is mainly for access control system telecommunication, industrial telephone, vending machine communication, security system and some other public facilities
