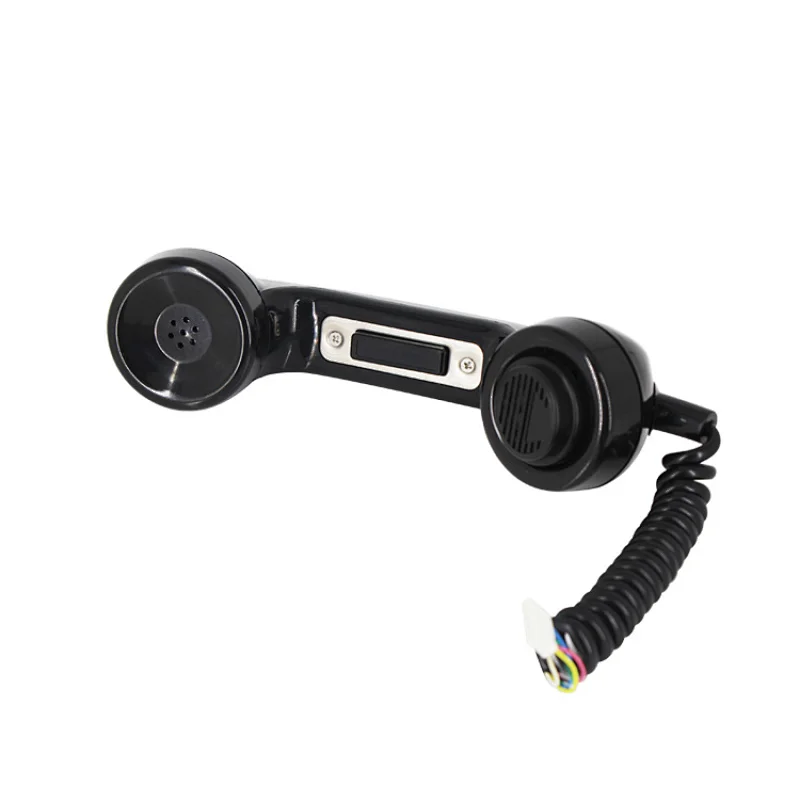

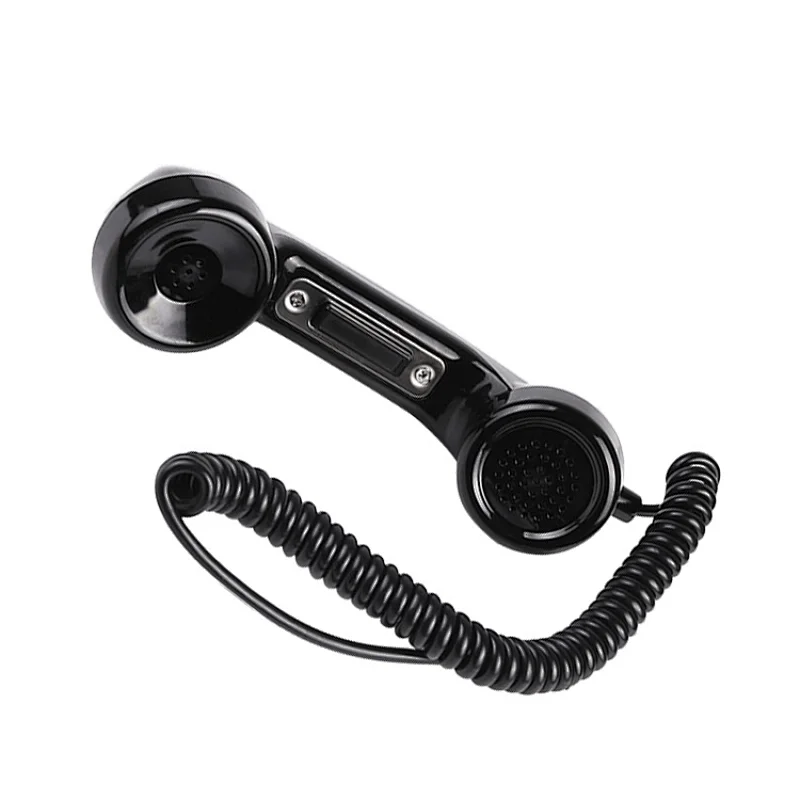

Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset
Explosionproof Plastic Telephone Handset

Explosionproof Plastic Telephone Handset

Model NO.
A15
Quantity:



Material:

1. RoHS approved ChiMei Polycarbonate (Optional)

2. UL/RoHS approved ChiMei Acrylate Styrene Acrylonitrile (Default)

3. PC copolymer with enhanced UV stabilization Lexan Resin SLX2432T (Optional)

4. Explosion-proof Carbon loaded ABS and flame resistant ABS material are available


Cord Length:

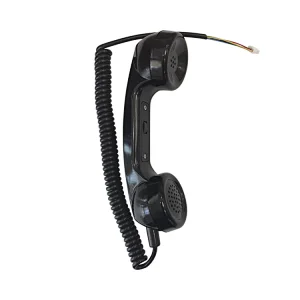

1. PVC curly cord (Default) - Standard cord length 9 inch in retracted, 6 feet after extended (Default) - Customized different length is available.

2. Weather resistant PVC curly cord (Optional)

3. Hytrel curly cord (Optional)

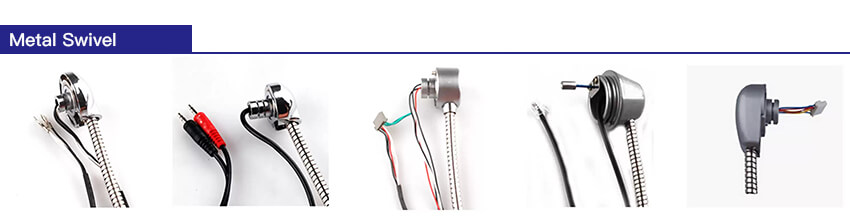

4. SUS304 Stainless steel armored cord (Default)

- Standard armored cord length 32 inch and 10 inch, 12 inch,18 inch and 23 inch are optional.

- Includes steel lanyard which is anchored to handset handle. Matched steel rope with different pull strength.

  - Dia: 1.6mm, 0.063”, Pull test load:170 kg, 375 lbs.

  - Dia: 2.0mm, 0.078”, Pull test load:250 kg, 551 lbs.

  - Dia: 2.5mm, 0.095”, Pull test load:450 kg, 992 lbs.






ItemPlastic Telephone Handset
Waterproof GradeIP65
Ambient Noise≤60dB
Working Frequency300~3400 Hz
SLR5~15 dB
RLR-7~2 dB
STMR≥7 dB
Working Temperature-25℃~+65℃
Relative Humidity≤95%
Atmospheric Pressure80~110 K Pa







handset     handset

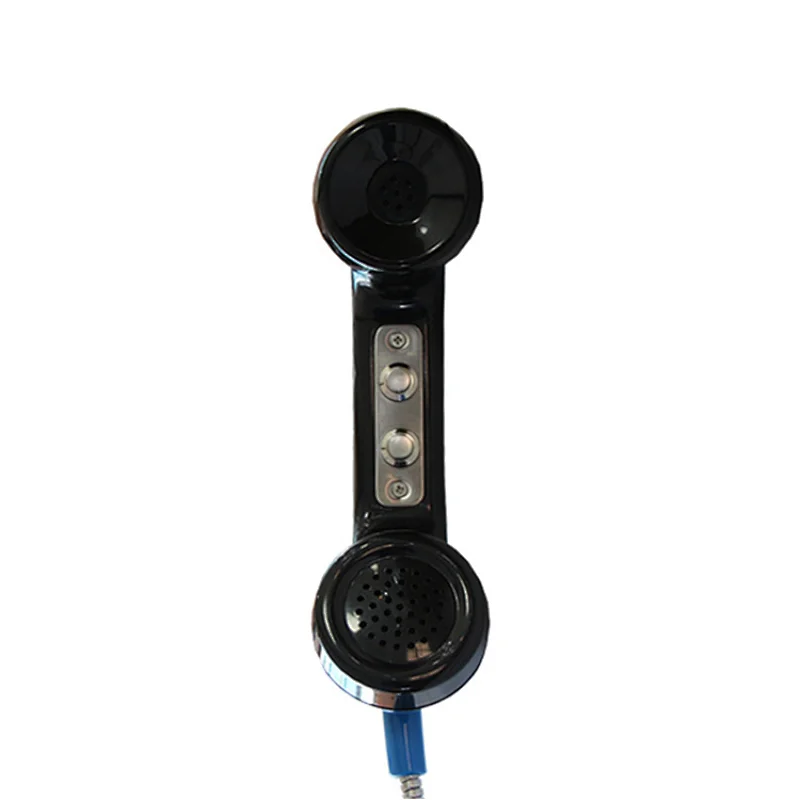

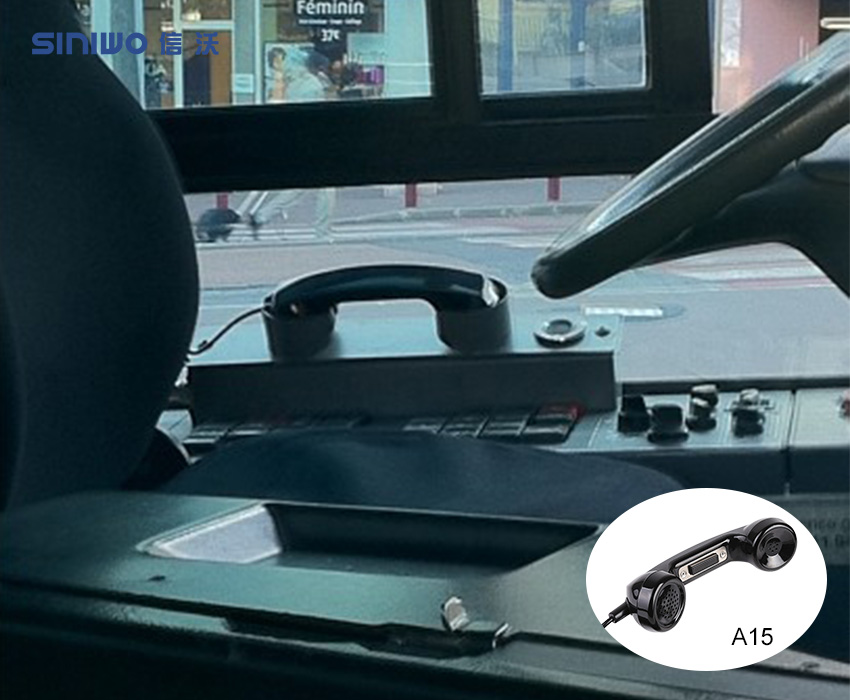

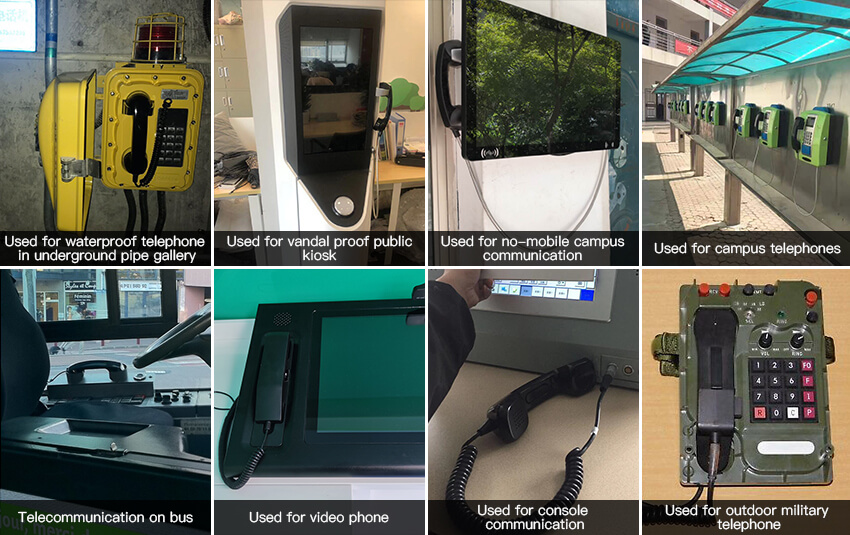

This handset is specially designed for telecommunication in noisy environment with push to talk switch. Also, it would be made with volume control buttons as customer's requests. It could be widely used in noisy plant, Chemical plant, Steel plant, noisy public telephone or some other vending machines.
