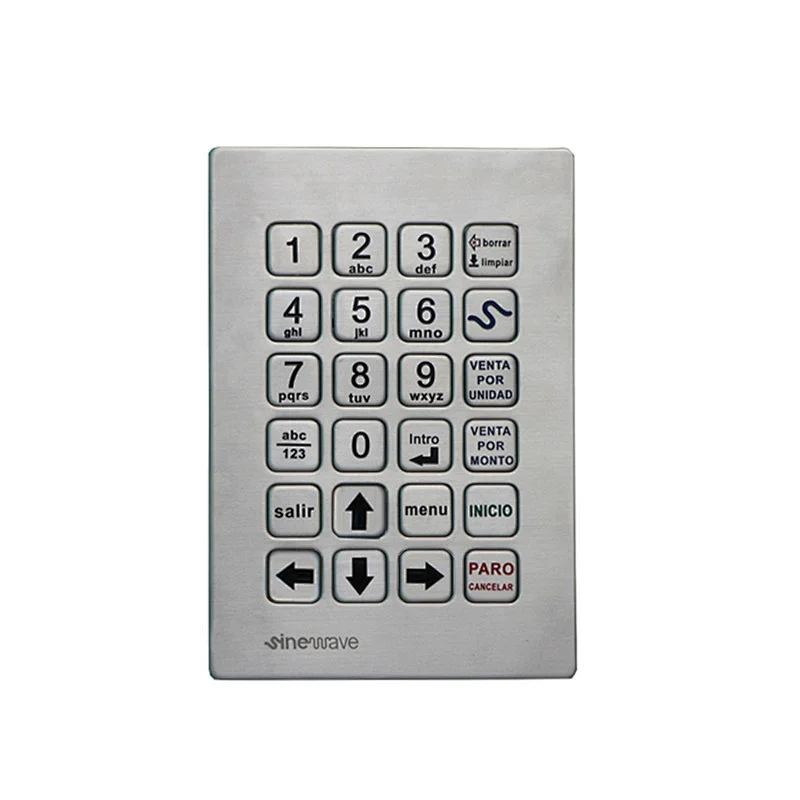

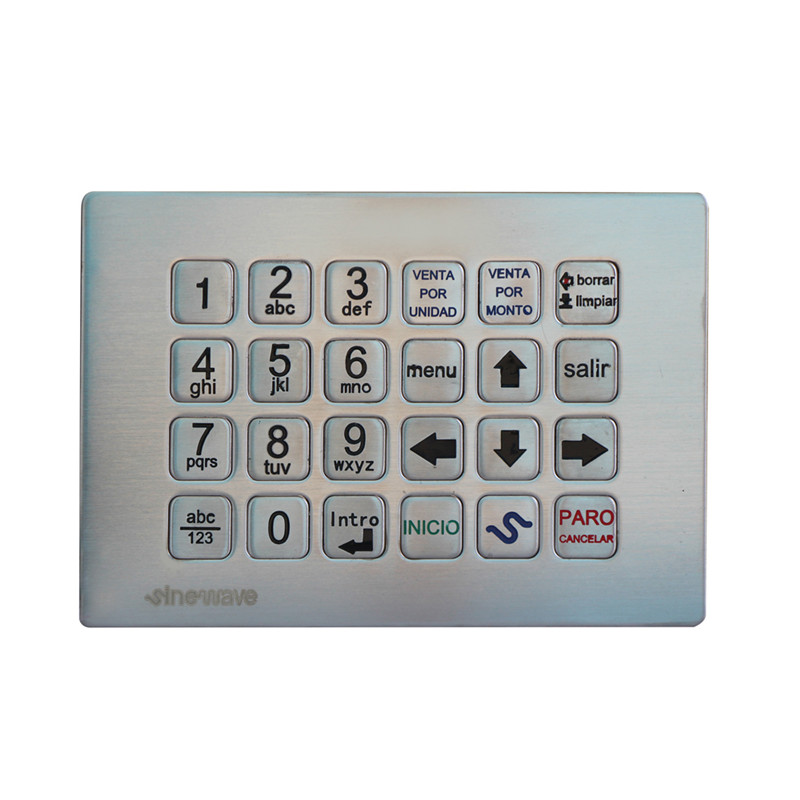

Customized Metal 4x6 24 Keys Matrix Waterproof Outdoor Keypad
Customized Metal 4x6 24 Keys Matrix Waterproof Outdoor Keypad
Customized Metal 4x6 24 Keys Matrix Waterproof Outdoor Keypad
Customized Metal 4x6 24 Keys Matrix Waterproof Outdoor Keypad
Customized Metal 4x6 24 Keys Matrix Waterproof Outdoor Keypad

Customized Metal 4x6 24 Keys Matrix Waterproof Outdoor Keypad

Model NO.
B734
Quantity:



1.Keypad made of stainless steel.

2.Vandal resistance and waterproof.

3.Font button surface and pattern can be customized according to customer requirements.

4.Buttons layout could be customized.

5.With the exception of the telephone, the keyboard can also be designed for other purposes.




ItemGarage Door Keypad
Input Voltage3.3V/5V
Waterproof GradeIP65
Actuation Force250g/2.45N(Pressure point)
Rubber LifeMore than 500 thousand cycles
Key Travel Distance0.45mm
Working Temperature-25℃~+65℃
Storage Temperature-40℃~+85℃
Relative Humidity30%-95%
Atmospheric Pressure60Kpa-106Kpa




matrix waterproof outdoor keypad












About Factory




About Test Equipments





About Certificates
