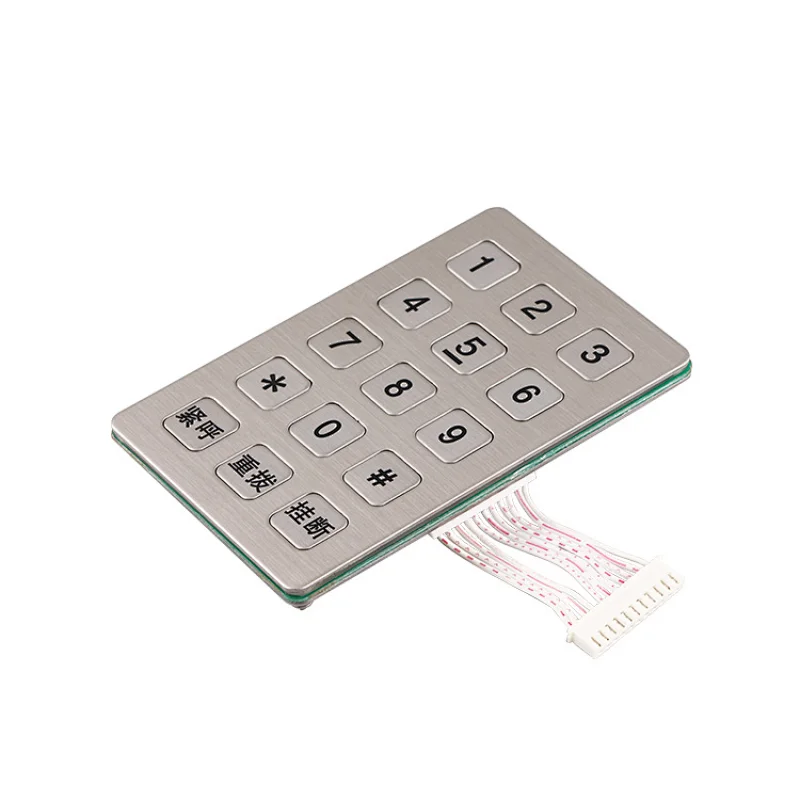

1.Keypad made of stainless steel.Vandal resistance.
2.Font button surface and pattern can be customized according to customer requirements
3.Double-sided board,Good for contact of gold-finger.
4.3X5 layout, Matrix design. 10 number buttons and 5 function buttons
| Item | Access Control System Keypad |
| Input Voltage | 3.3V/5V |
| Waterproof Grade | IP65 |
| Vandal roof Grade | IK09 |
| Working Life | More than 1 million time per key |
| Key Elasticity | 250g/2.45N |
| Key Travel Distance | 0.45mm |
| Working Temperature | -25℃～+65℃ |
| Storgage Temperature | -40℃～+85℃ |
| Relative Humidity | 30%-95% |
Normally the keypad is specialized for ticket machies and payment terminals
