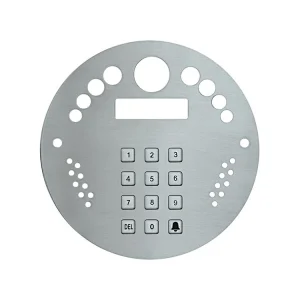

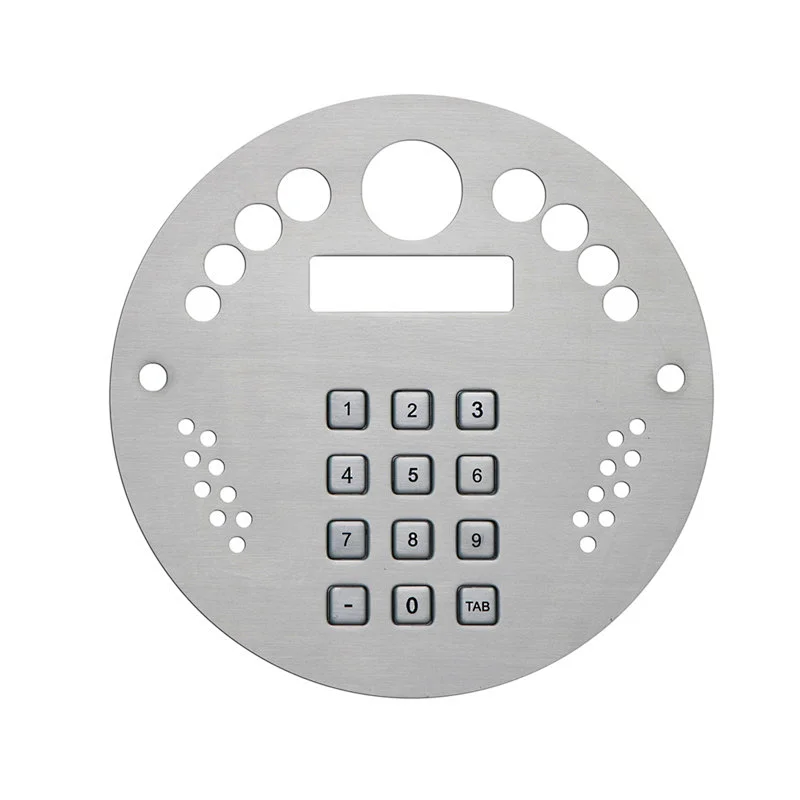

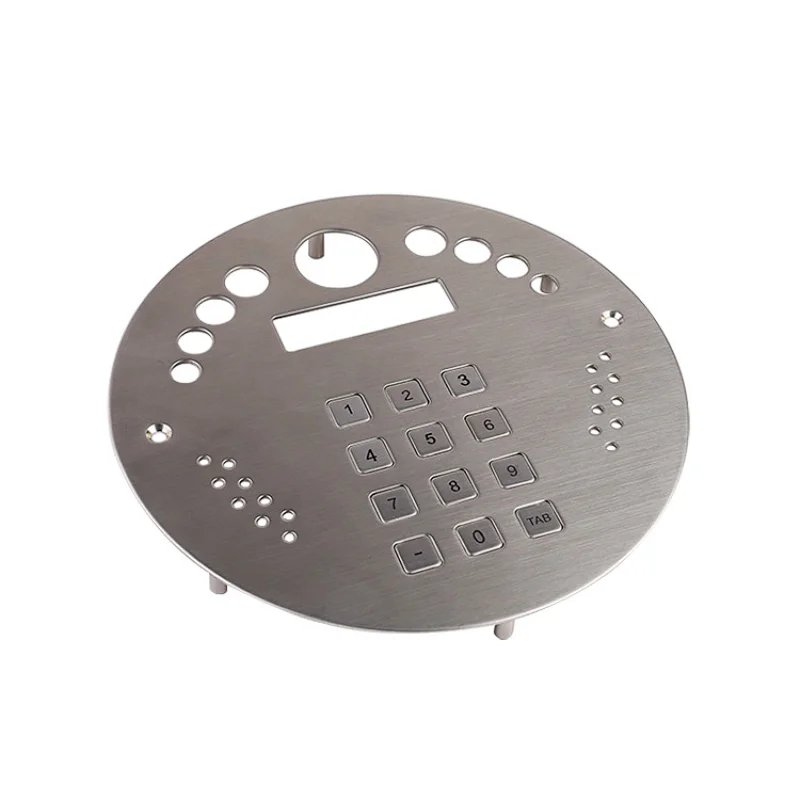

Access Control Keypad Atm Die Cast Metal Keypad Overlay
Access Control Keypad Atm Die Cast Metal Keypad Overlay
Access Control Keypad Atm Die Cast Metal Keypad Overlay
Access Control Keypad Atm Die Cast Metal Keypad Overlay
Access Control Keypad Atm Die Cast Metal Keypad Overlay
Access Control Keypad Atm Die Cast Metal Keypad Overlay
Access Control Keypad Atm Die Cast Metal Keypad Overlay
Access Control Keypad Atm Die Cast Metal Keypad Overlay
Access Control Keypad Atm Die Cast Metal Keypad Overlay
Access Control Keypad Atm Die Cast Metal Keypad Overlay
Access Control Keypad Atm Die Cast Metal Keypad Overlay
Access Control Keypad Atm Die Cast Metal Keypad Overlay
Access Control Keypad Atm Die Cast Metal Keypad Overlay

Access Control Keypad Atm Die Cast Metal Keypad Overlay

Model NO.
B702
Quantity:


1. keypad has the LCD window

2. The keys layout can be customized

3. Surface treatment of frame and keys: satin-finished or mirror polish.

4. Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.





Itemsteel keypad
Input Voltage3.3V/5V
Waterproof GradeIP65
Actuation Force250g/2.45N(Pressure point)
Rubber LifeMore than 500 thousand cycles
Key Travel Distance0.45mm
Working Temperature-25℃~+65℃
Storage Temperature-40℃~+85℃
Relative Humidity30%-95%
Atmospheric Pressure60Kpa-106Kpa




Stainless steel keypad








It's mainly for fuel dispenser
