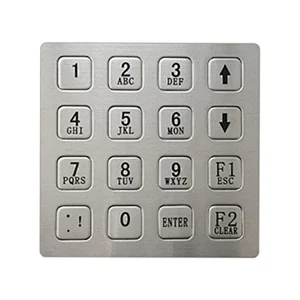

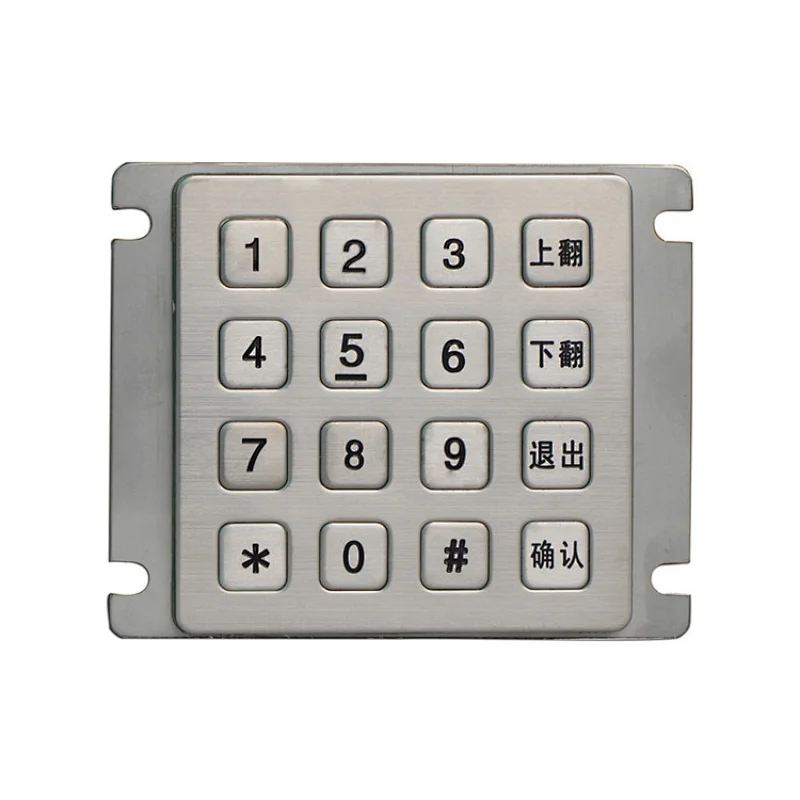

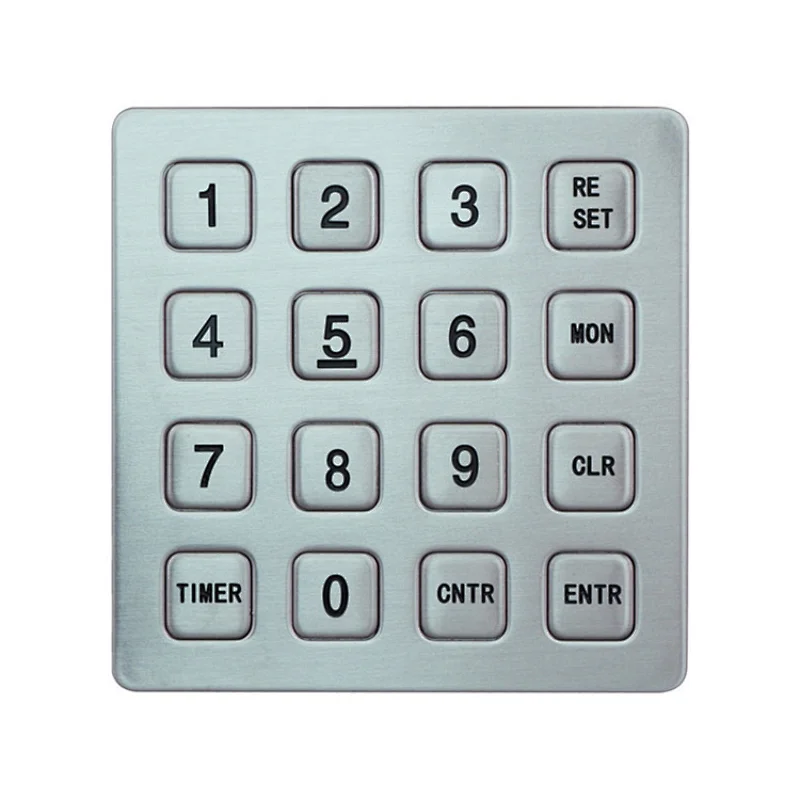

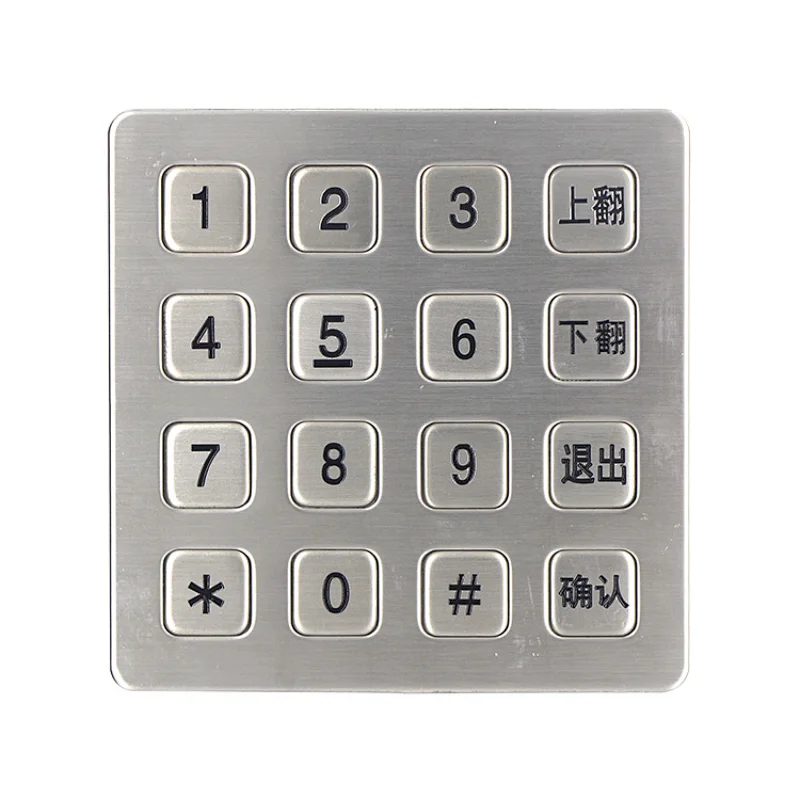

4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad
4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad
4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad
4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad
4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad
4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad
4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad
4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad
4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad
4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad
4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad
4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad
4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad

4x4 Digital Metal Wall Mounted Anti Vandalism Cnc Machine Keypad

Model NO.
B723
Quantity:


1.Keypad made of stainless steel.Vandal resistance.
2.Font button surface and pattern can be customized according to customer requirements
3.Double-sided board,Good for contact of gold-finger.
4.4X4 layout, Matrix design. 10 number buttons and 6 function buttons



ItemIndustrial Keypad
Input Voltage3.3V/5V
Waterproof GradeIP65
Vandal roof GradeIK09
Working LifeMore than 1 million time per key
Key Elasticity250g/2.45N
Key Travel Distance0.45mm
Working Temperature-25℃~+65℃
Storgage Temperature-40℃~+85℃
Relative Humidity30%-95%




Metal kepad









The keypad usually used in ATM machine.
