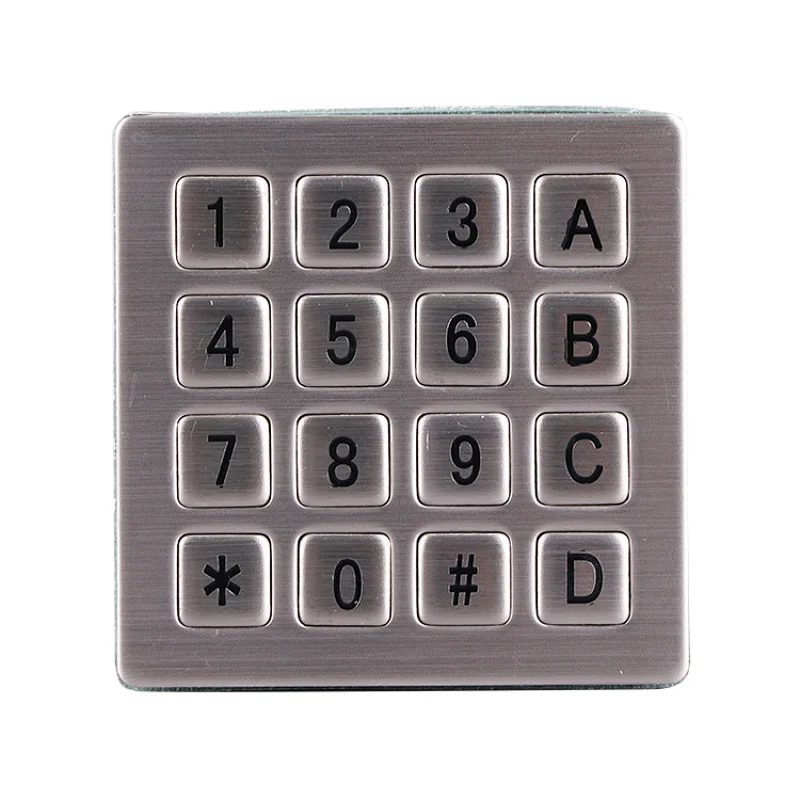

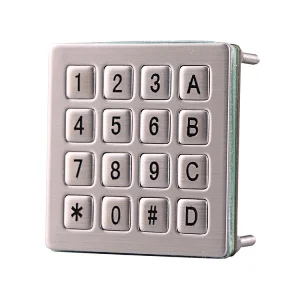

4x4 16 Keys Metallic Atm Matrix Cnc Machine Kiosk Keypad
4x4 16 Keys Metallic Atm Matrix Cnc Machine Kiosk Keypad
4x4 16 Keys Metallic Atm Matrix Cnc Machine Kiosk Keypad
4x4 16 Keys Metallic Atm Matrix Cnc Machine Kiosk Keypad
4x4 16 Keys Metallic Atm Matrix Cnc Machine Kiosk Keypad
4x4 16 Keys Metallic Atm Matrix Cnc Machine Kiosk Keypad
4x4 16 Keys Metallic Atm Matrix Cnc Machine Kiosk Keypad
4x4 16 Keys Metallic Atm Matrix Cnc Machine Kiosk Keypad
4x4 16 Keys Metallic Atm Matrix Cnc Machine Kiosk Keypad
4x4 16 Keys Metallic Atm Matrix Cnc Machine Kiosk Keypad
4x4 16 Keys Metallic Atm Matrix Cnc Machine Kiosk Keypad

4x4 16 Keys Metallic Atm Matrix Cnc Machine Kiosk Keypad

Model NO.

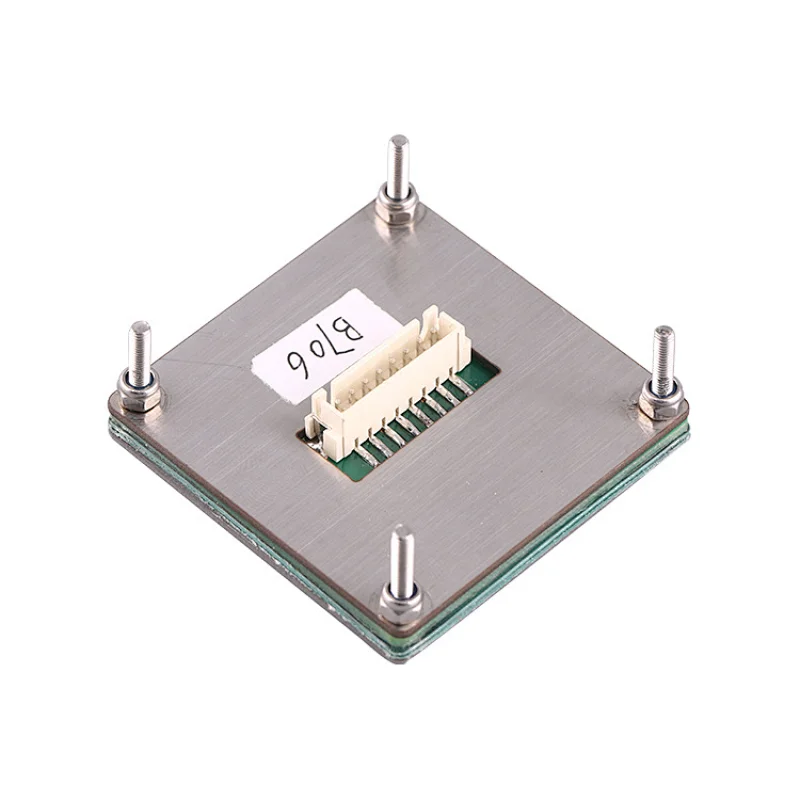

B706
Quantity:

1.Panels, buttons made of high quality stainless steel, has a strong anti-destructive
2.Font button surface and pattern can be customized according to customer requirements
3.PCB double sided, metal dome lines, access to reliable
4.Key word laser engraving, etching, oil filled, high strength paint
5.4x4 keyboard matrix scanning,10 numeric keys,6 functional keys




ItemMetal Kiosk Keyboard
Input Voltage3.3V/5V
Waterproof GradeIP65
Actuation Force250g/2.45N(Pressure point)
Rubber LifeMore than 500 thousand cycles
Key Travel Distance0.45mm
Working Temperature-25℃~+65℃
Storage Temperature-40℃~+85℃
Relative Humidity30%-95%
Atmospheric Pressure60Kpa-106Kpa



Normally used in public environment applications, such as vending machines, ticket machines, payment terminals.
