Material:
1. RoHS approved ChiMei Polycarbonate (Optional)
2. UL/RoHS approved ChiMei Acrylate Styrene Acrylonitrile (Default)
3. PC copolymer with enhanced UV stabilization Lexan Resin SLX2432T (Optional)
4. Explosion-proof Carbon loaded ABS and flame resistant ABS material are available
Cord Length:
1. PVC curly cord (Default) - Standard cord length 9 inch in retracted, 6 feet after extended (Default) - Customized different length is available.
2. Weather resistant PVC curly cord (Optional)
3. Hytrel curly cord (Optional)
4. SUS304 Stainless steel armored cord (Default)
- Standard armored cord length 32 inch and 10 inch, 12 inch,18 inch and 23 inch are optional.
- Includes steel lanyard which is anchored to handset handle. Matched steel rope with different pull strength.
- Dia: 1.6mm, 0.063”, Pull test load:170 kg, 375 lbs.
- Dia: 2.0mm, 0.078”, Pull test load:250 kg, 551 lbs.
- Dia: 2.5mm, 0.095”, Pull test load:450 kg, 992 lbs.
| Item | black handset |
| Waterproof Grade | IP65 |
| Ambient Noise | ≤60dB |
| Working Frequency | 300～3400 Hz |
| SLR | 5～15 dB |
| RLR | -7～2 dB |
| STMR | ≥7 dB |
| Working Temperature | -25℃～+65℃ |
| Relative Humidity | ≤95％ |
| Atmospheric Pressure | 80～110 K Pa |

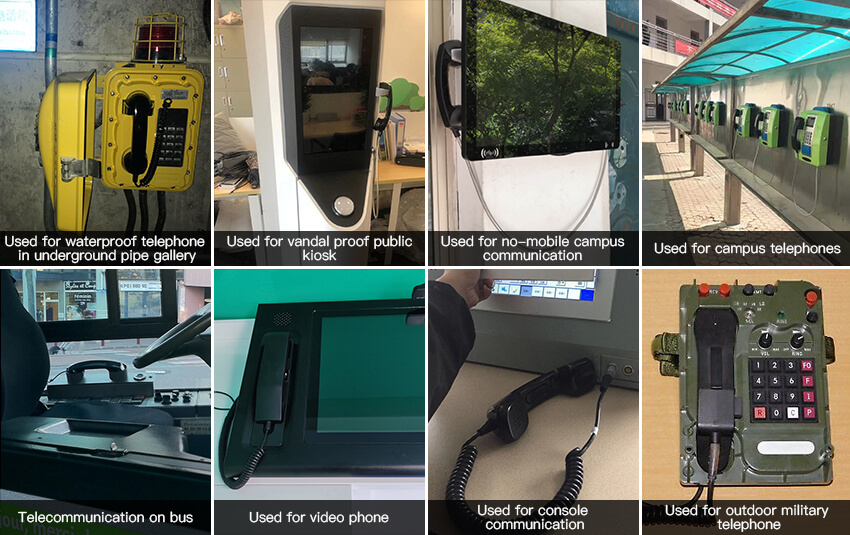

It is mainly produces for access control system, industrial telephone, vending machine, security system and some other public facilities. The surface of this handset is matte surface with good touch feeling.
