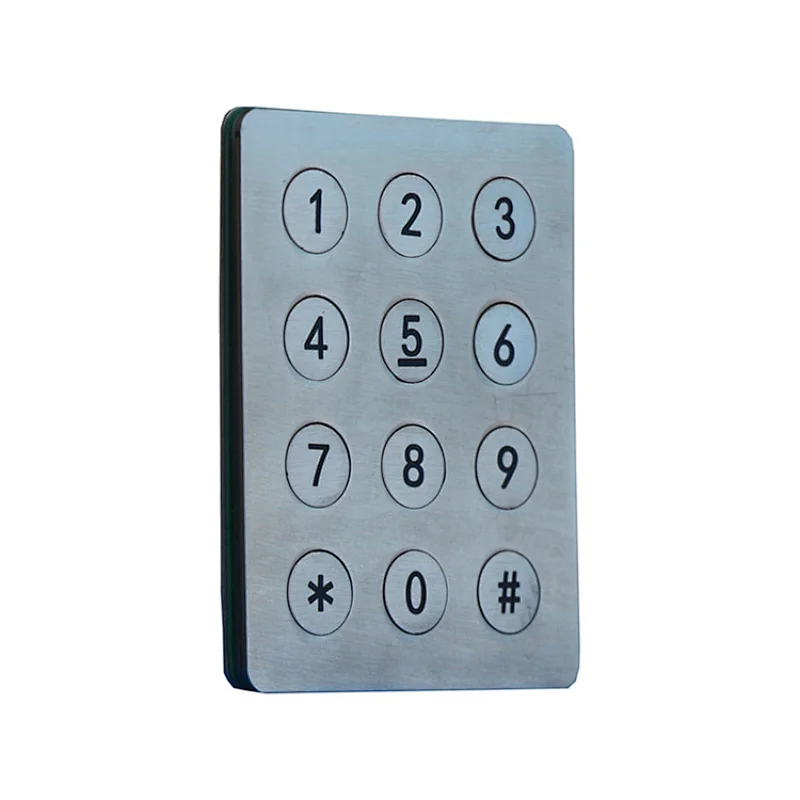

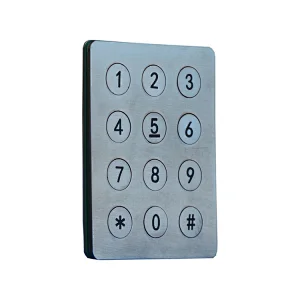

3x4 waterproof outdoor round button programmable numeric security keypad
3x4 waterproof outdoor round button programmable numeric security keypad
3x4 waterproof outdoor round button programmable numeric security keypad
3x4 waterproof outdoor round button programmable numeric security keypad
3x4 waterproof outdoor round button programmable numeric security keypad

3x4 waterproof outdoor round button programmable numeric security keypad

Model NO.
B704
Minimum order quantity:
1
Quantity:

1. 12 Keys Vandal proof IP65 stainless steel, Dot matrix keypad.

2. carbon-on-gold key switch technology.

3. rear mounting/Build-In mounting.

1.Surface treatment of frame and keys: satin-finished or mirror polish.

2.Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.




Input Voltage3.3V/5V
Waterproof GradeIP65
Actuation Force250g/2.45N(Pressure point)
Rubber LifeMore than 500 thousand cycles
Key Travel Distance0.45mm
Working Temperature-25℃+65℃
Storage Temperature-40℃+85℃
Relative Humidity30%-95%
Atmospheric Pressure60Kpa-106Kpa




The keypad usually used in ATM machine and fuel dispenser
