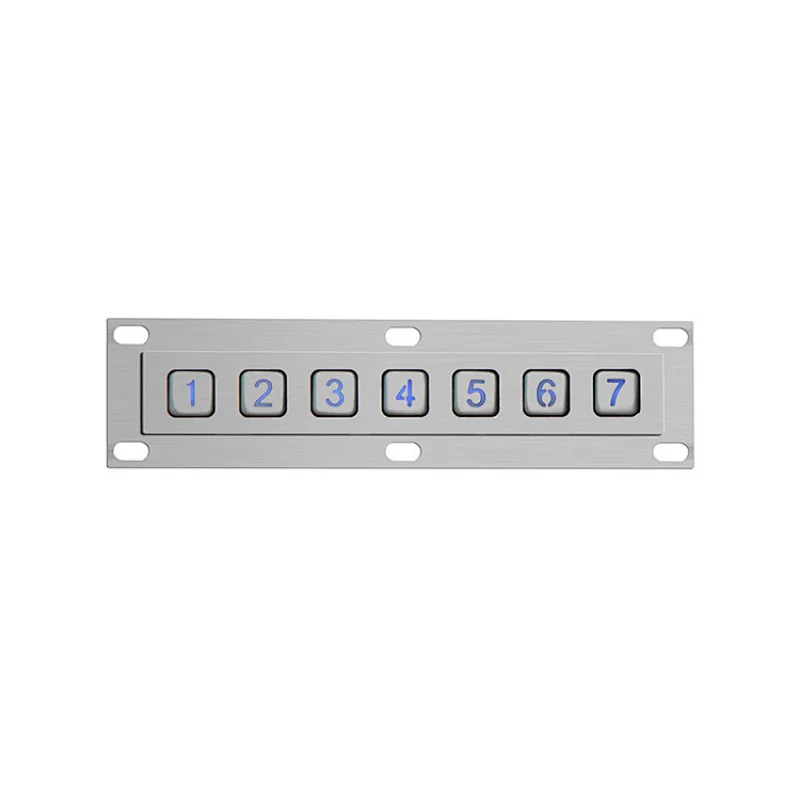

1x7 Backlight Programmable Numeric Electric Elevator Keypad
1x7 Backlight Programmable Numeric Electric Elevator Keypad
1x7 Backlight Programmable Numeric Electric Elevator Keypad
1x7 Backlight Programmable Numeric Electric Elevator Keypad
1x7 Backlight Programmable Numeric Electric Elevator Keypad
1x7 Backlight Programmable Numeric Electric Elevator Keypad
1x7 Backlight Programmable Numeric Electric Elevator Keypad
1x7 Backlight Programmable Numeric Electric Elevator Keypad
1x7 Backlight Programmable Numeric Electric Elevator Keypad
1x7 Backlight Programmable Numeric Electric Elevator Keypad
1x7 Backlight Programmable Numeric Electric Elevator Keypad

1x7 Backlight Programmable Numeric Electric Elevator Keypad

Model NO.
B863
Quantity:


1.Material: 304# brushed stainless steel.
2.Conductive silicone rubber produced using natural rubber, wear resistance, corrosion resistance, anti-aging
3.Stainless steel keypad frame is available as customer’s request.
4.Double-sided PCB (customized), contacts Gold-finger use of gold process, the contact is more reliable




ItemElevator Keypad
Input Voltage3.3V/5V
Waterproof GradeIP65
Vandal roof GradeIK09
Working LifeMore than 1 million time per key
Key Elasticity250g/2.45N
Key Travel Distance0.45mm
Working Temperature-25℃~+65℃
Storgage Temperature-40℃~+85℃
Relative Humidity30%-95%




Numeric keypad







It is mainly used in access control system
