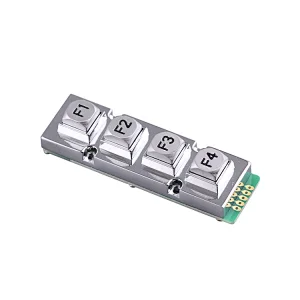

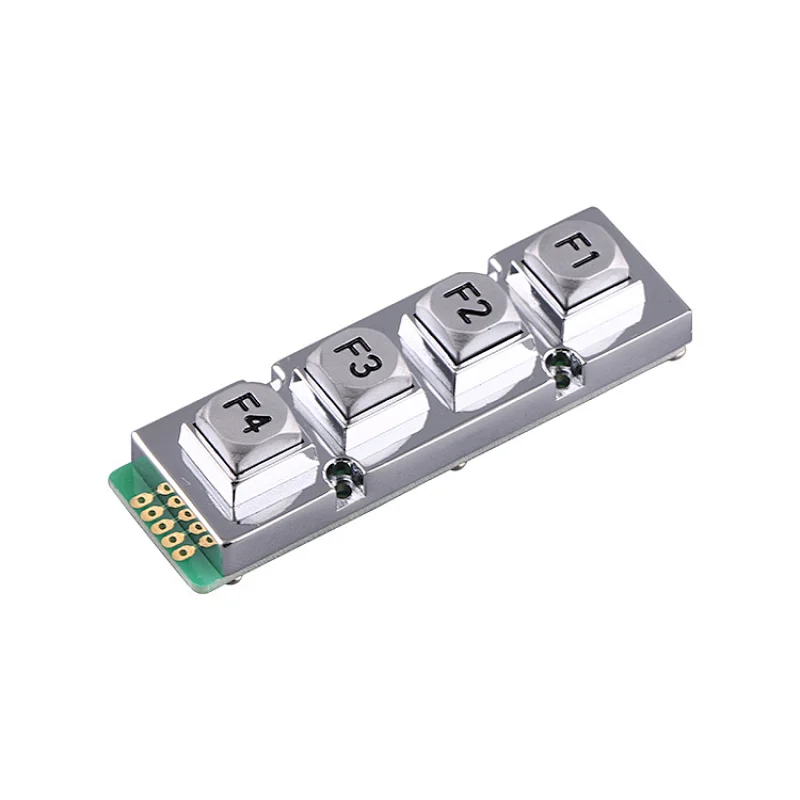

1x4 Zinc Alloy Metal Keypad
1x4 Zinc Alloy Metal Keypad
1x4 Zinc Alloy Metal Keypad
1x4 Zinc Alloy Metal Keypad
1x4 Zinc Alloy Metal Keypad
1x4 Zinc Alloy Metal Keypad
1x4 Zinc Alloy Metal Keypad
1x4 Zinc Alloy Metal Keypad
1x4 Zinc Alloy Metal Keypad

1x4 Zinc Alloy Metal Keypad

Model NO.
B510
Minimum order quantity:
1
Quantity:

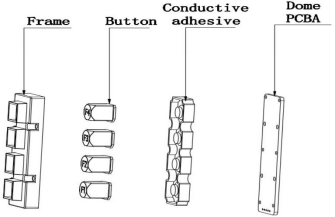

1.Key frame uses high quality zinc alloy material.
2. Buttons are made of high quality zinc alloy, with a strong anti-destruction capability.
3. With natural conductive silicone rubber -weather resistance, corrosion resistance, anti-aging.
4. Double side PCB with golden finger, resistance to oxidation.



Item1x4 keypad
Input Voltage3.3V/5V
Waterproof GradeIP65
Actuation Force250g/2.45N(Pressure point)
Rubber LifeMore than 1 million cycles
Key Travel Distance0.45mm
Working Temperature-25℃~+65℃
Storage Temperature-40℃~+85℃
Relative Humidity30%-95%
Atmospheric Pressure60Kpa-106Kpa










It is mainly for access control system, security system and some other public facilities.
