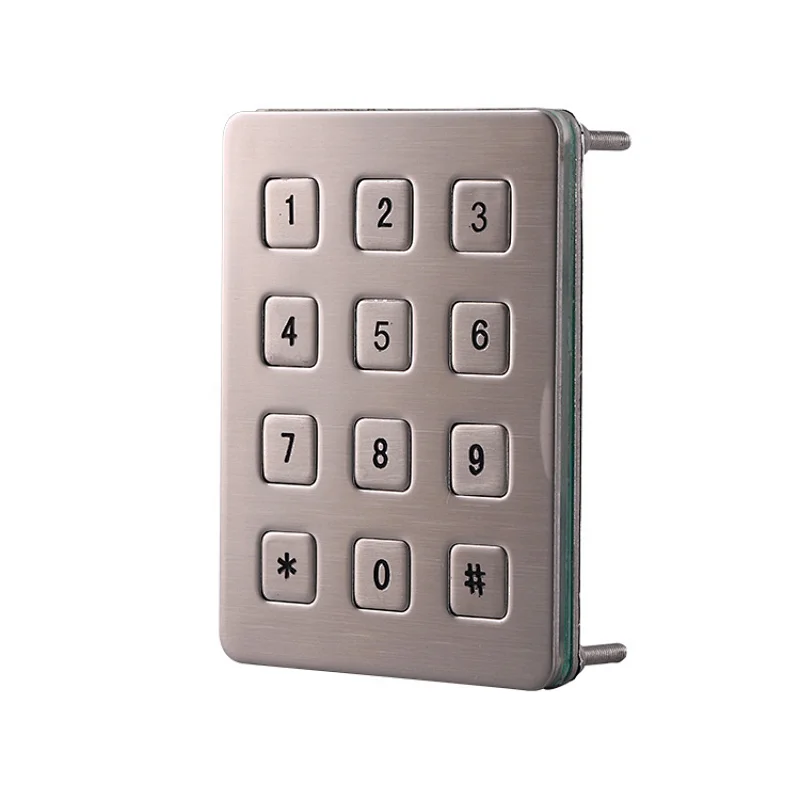

12 Keys Industrial Waterproof Metal Mechanical Usb Function Keypad
12 Keys Industrial Waterproof Metal Mechanical Usb Function Keypad
12 Keys Industrial Waterproof Metal Mechanical Usb Function Keypad
12 Keys Industrial Waterproof Metal Mechanical Usb Function Keypad
12 Keys Industrial Waterproof Metal Mechanical Usb Function Keypad
12 Keys Industrial Waterproof Metal Mechanical Usb Function Keypad
12 Keys Industrial Waterproof Metal Mechanical Usb Function Keypad
12 Keys Industrial Waterproof Metal Mechanical Usb Function Keypad
12 Keys Industrial Waterproof Metal Mechanical Usb Function Keypad
12 Keys Industrial Waterproof Metal Mechanical Usb Function Keypad
12 Keys Industrial Waterproof Metal Mechanical Usb Function Keypad

12 Keys Industrial Waterproof Metal Mechanical Usb Function Keypad

Model NO.
B705
Minimum order quantity:
1
Quantity:

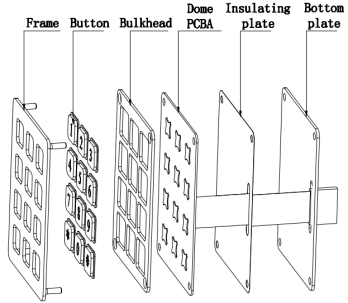

1.Panels, buttons made of high quality stainless steel, has a strong anti-destructive
2.Font button surface and pattern can be customized according to customer requirements
3.PCB double sided, metal dome lines, access to reliable
4.Key word laser engraving, etching, oil filled, high strength paint
5.3x4 keyboard matrix scanning,10 numeric keys,2 functional keys



ItemWaterproof Numeric Keypad
Input Voltage3.3V/5V
Waterproof GradeIP65
Actuation Force250g/2.45N(Pressure point)
Rubber LifeMore than 500 thousand cycles
Key Travel Distance0.45mm
Working Temperature-25℃~+65℃
Storage Temperature-40℃~+85℃
Relative Humidity30%-95%
Atmospheric Pressure60Kpa-106Kpa



Waterproof keypad







The keypad normally used in access control system.
