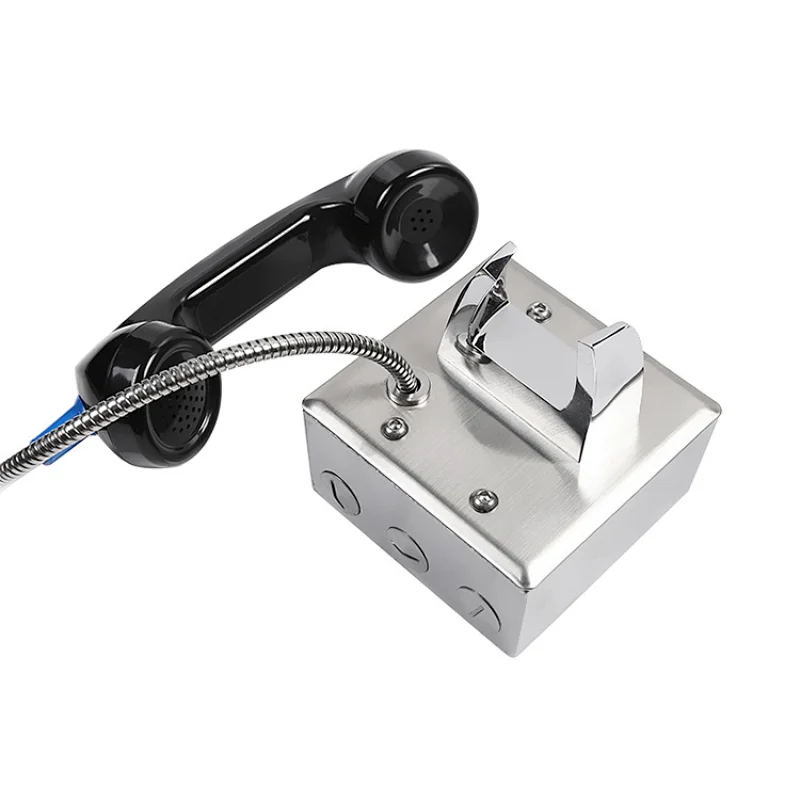

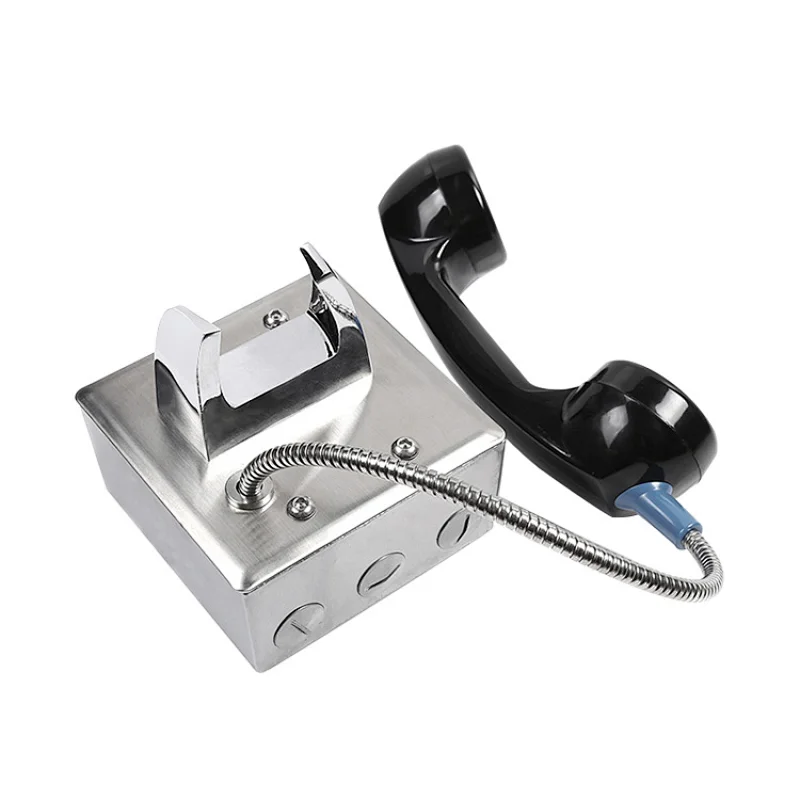

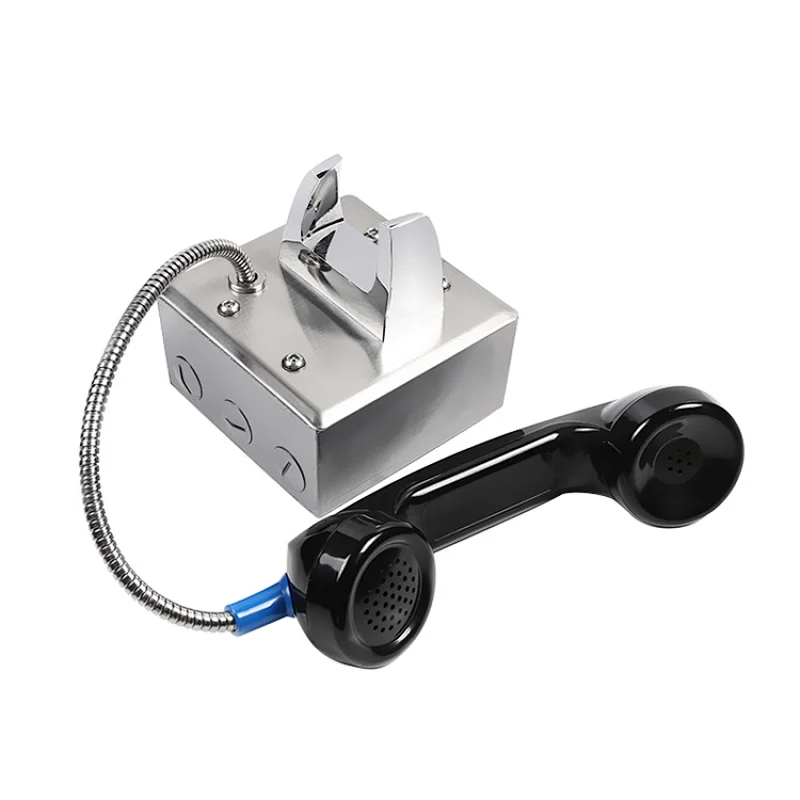

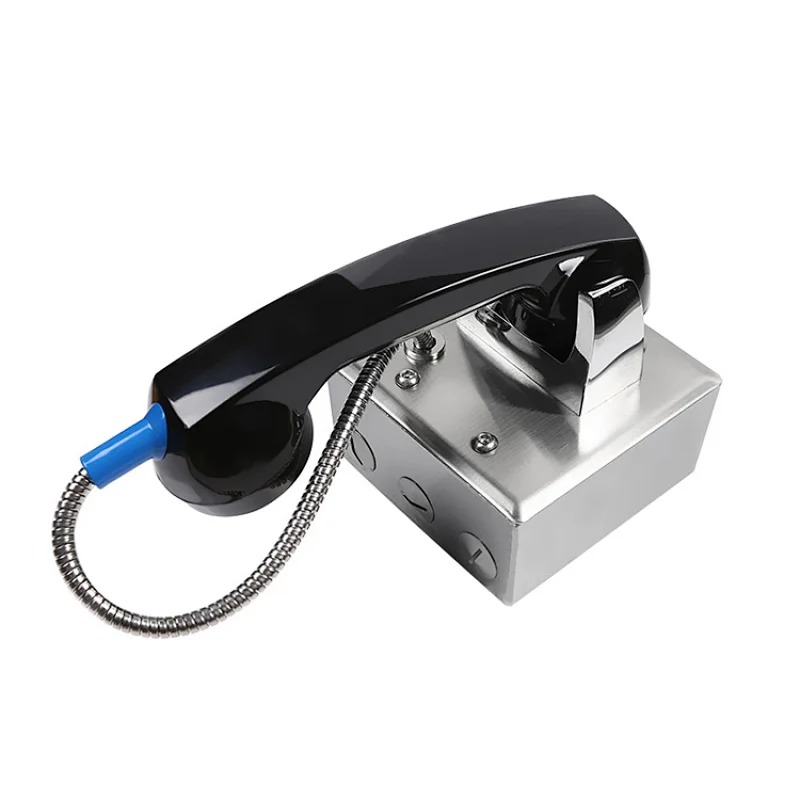

The Joiwo Model JWAT123 is a Ring-Down Telephone designed for special-purpose applications that require a Vandal Resistant but attractive telephone.
Vandal resistant stainless steel prison visitation or direct connect wall mount panel telephone. Units are designed to talk one to one with another unit. Equipped with a 32” armored cord handset, operational magnetic switch hook, tamper resistant security screws, and 2-gang style surface mounting box.
1.Standard Analogue phone. Phone line powered.
2.304 stainless steel material shell, high mechanical strength and strong impact resistance.
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Heavy chrome metal keypad bezel, buttons, and hook-switch lever withstand abuse and vandalism
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available.
7.Wall mounted, Simple installation.
8.Weather proof protection IP54.
9.Connection: RJ11 screw terminal pair cable.
10.Multiple color available.
11.Self-made telephone spare part available.
12. CE, FCC, RoHS, ISO9001 compliant.
| Item | inmate telephone |
| Power Supply | Telephone Line Powered |
| Voltage | DC48V |
| Standby Work Current | ≤1mA |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | ≤80dB(A) |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+60℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Anti-vandalism Level | IK10 |
| Installation | Wall-mounted |

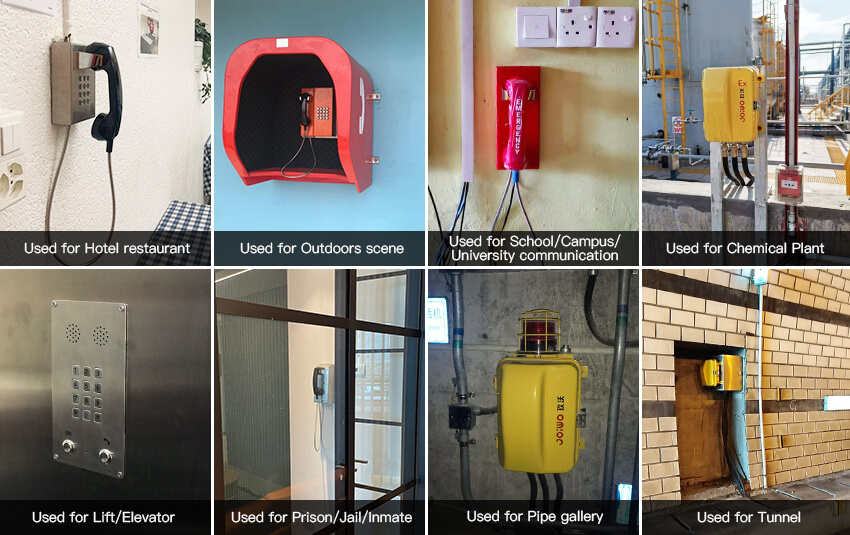

jails, hospitals, oil rigs, platforms, dormitories, airports, control rooms, sally ports, schools, plant, gate and entryways, PREA phone,or waiting rooms etc.
| Certification : | SGS, ISO 9001:2000 , CE, FCC,ROHS,CNEX, IP65/IP66/IP67, |
| Packing: | 12 sets/carton, 22kg/carton |
| Delivery date: | 3-7 days |
| MOQ: | 1 set |
| Supply Ability: | 5000 sets/month |
| Payment Term: | T/T, Paypal, Alibaba Trade Assurance, L/C or others for negotiation. |
| Samples Offer: | Samples are available and can be free for strategic customer. |
| Samples arrangement: | Standard samples will be prepared to sending in about 3 working days. (And DHL 3-5days; UPS 3-5days; Fedex / TNT 3 5days; EMS 7 days to reach destination) |
| After-sales Service: | 2 Years' Warranty and spare parts are available for maintenance. |
| Contact: | Tel: 0086-574-58223619, Mob: +86-13858299692 |
