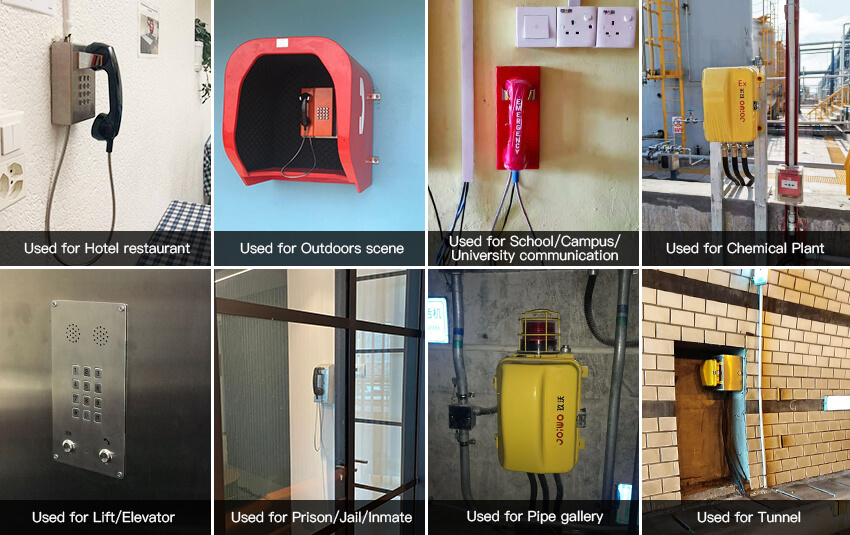

JWAT204 is a kind of waterproof telephone with the protection class IP54, its dimensions is 230 × 320 × 130, it is made by Cold Rolled Steel. The communication mode is analogue, IP is also available. This Telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
1.Standard Analogue phone. Phone line powered.
2.Robust housing, constructed of cold rolled steel with powder coated
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.

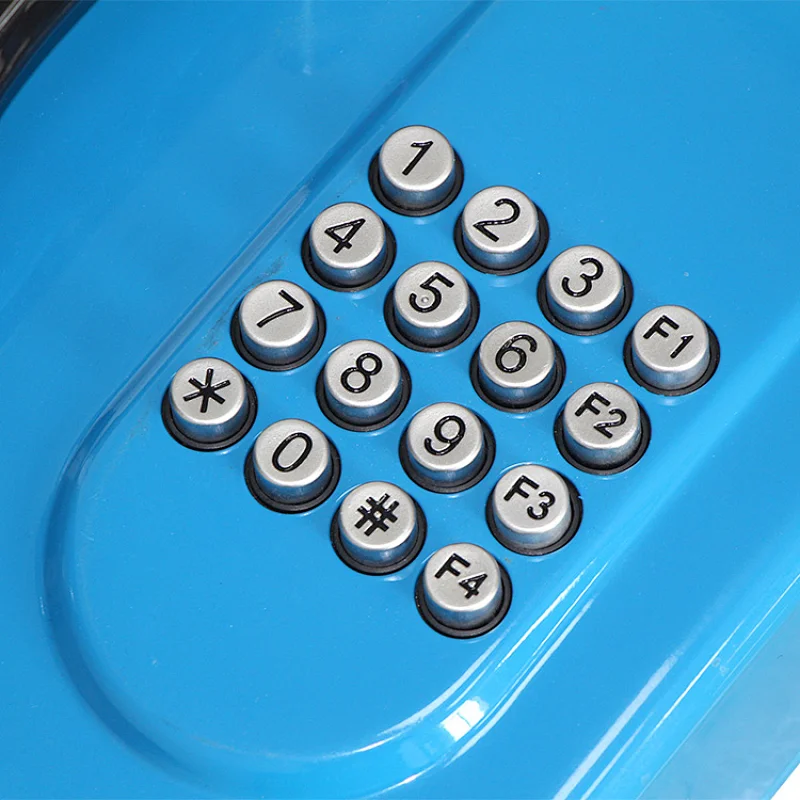

4.Zinc alloy keypad with 4 speed dial buttons.
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available.
7.Wall mounted, Simple installation.
8.Weather proof protection IP54.
9.Connection: RJ11 screw terminal pair cable.
10.Multiple color available.
11.Self-made telephone spare part available.
12.CE, FCC, RoHS, ISO9001 compliant.
| Item | Public Pay Phones |
| Power Supply | Telephone Line Powered |
| Voltage | DC48V |
| Standby Work Current | ≤1mA |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | ≤80dB(A) |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+70℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Anti-vandalism Level | IK09 |
| Installation | Wall-mounted |
| Certification : | SGS, ISO 9001:2000 , CE, FCC,ROHS,CNEX, IP65/IP66/IP67, |
| Packing: | 1 sets/carton, 4.5 kg/carton |
| Delivery date: | 3-7 days |
| MOQ: | 1 set |
| Supply Ability: | 5000 sets/month |
| Payment Term: | T/T, Paypal, Alibaba Trade Assurance, L/C or others for negotiation. |
| Samples Offer: | Samples are available and can be free for strategic customer. |
| Samples arrangement: | Standard samples will be prepared to sending in about 3 working days. (And DHL 3-5days; UPS 3-5days; Fedex / TNT 3 5days; EMS 7 days to reach destination) |
| After-sales Service: | 2 Years' Warranty and spare parts are available for maintenance. |
| Contact: | Tel: 0086-574-58223619, Mob: +86-13858299692 |
This Vandal-proof Telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
